Mercury iTC
Page 45
USER INTERFACE
Original Instructions

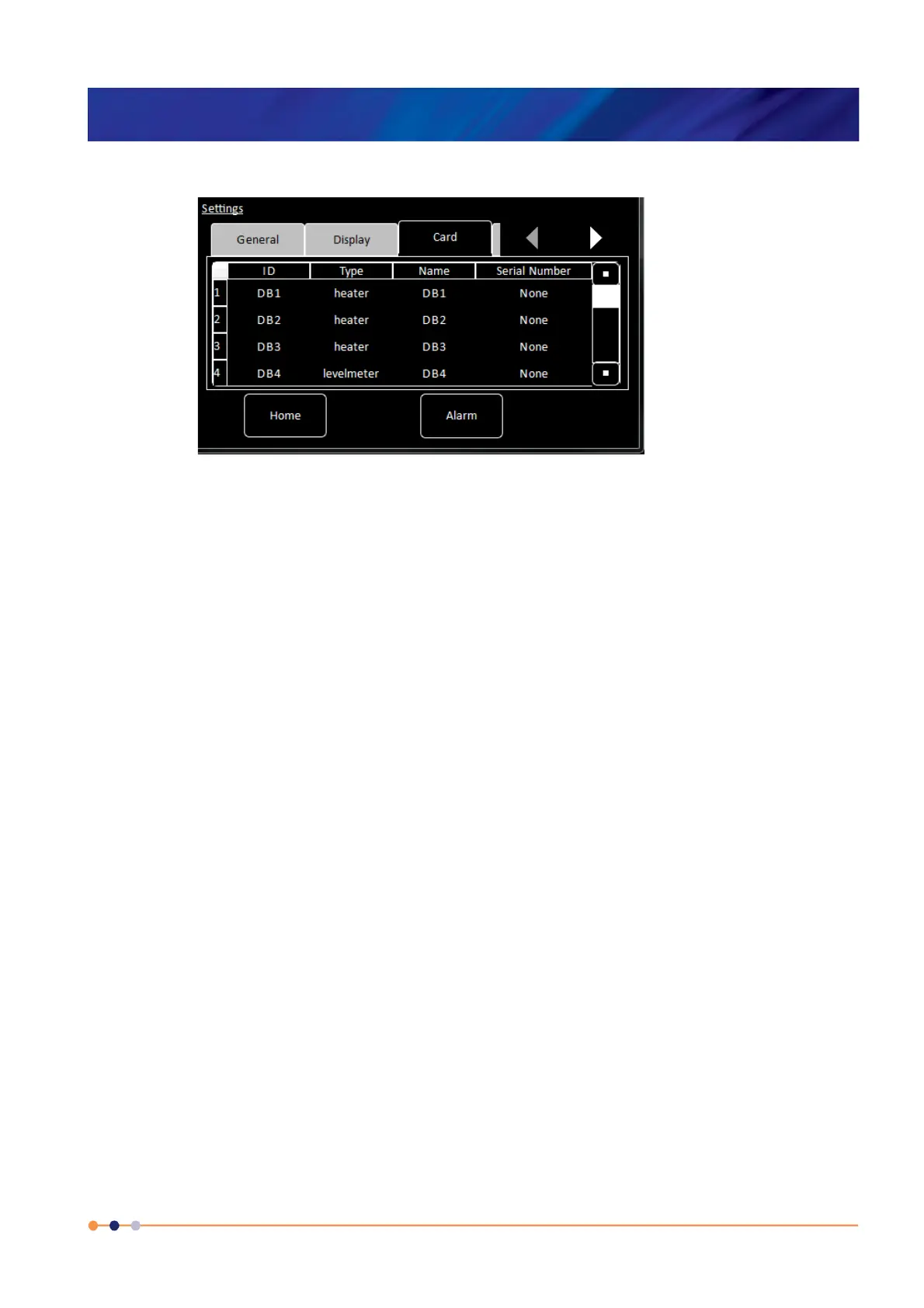

3.2.12.2 Card settings tab
Each row of this table corresponds to an expansion slot in the iTC. The table lists which
boards are fitted in which slot. The columns show:
 Row number
The number of the slot.
 ID
The ID of the board fitted in this slot.
 Type
The type of board fitted in this slot.
 Name
The name of the board fitted in this slot.
 Serial Number
The serial number of the board fitted in this slot.
The page contains the following buttons:
 Alarm
Tap once to access the Alarm Logs page (see Section 3.2.13).
