3.2.5 Device pair configuration page
This page allows the user to pair a temperature sensor with a heater or gas flow
controller in a control loop. For example, a temperature sensor can be paired with a
heater. Figure 3-13 shows the page when all the pairings are unconfigured.

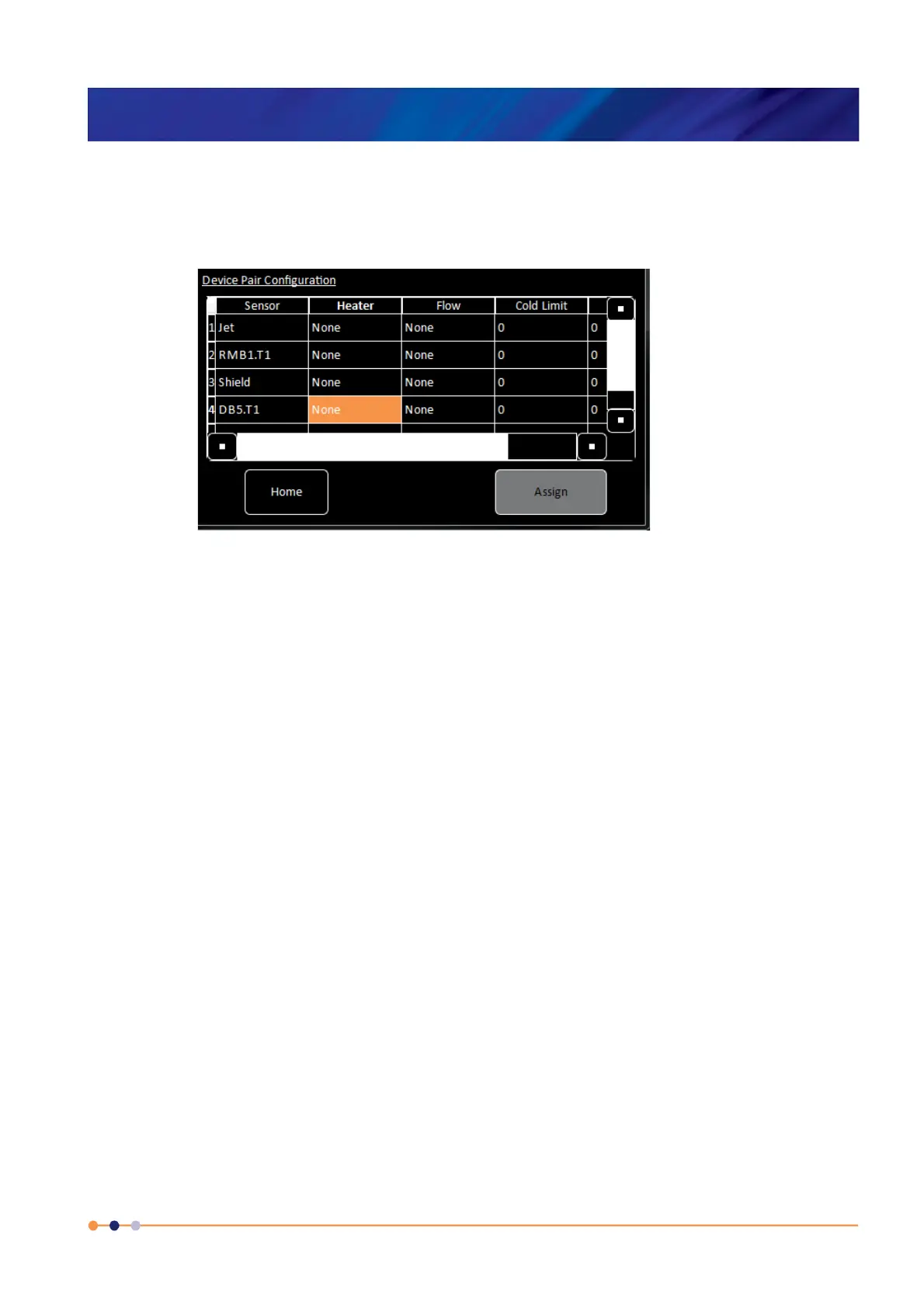

Figure 3-13 Device Pair Configuration Page (unconfigured)
The page contains the following fields:
 Board number
The board number is the first column in the table.
 Sensor
Displays the nickname of each sensor that is fitted to the unit. Tap this field to change
the sensor nickname.
 Heater
Displays the heater that is paired with each temperature sensor. Select a heater to
assign it to this temperature sensor (if applicable). Select None to remove a heater
from this configuration.
 Flow
Displays the gas flow controller that is paired with each temperature sensor. Select a
Gas Controller to assign it to this temperature sensor (if applicable). Select None to
remove a gas controller from this configuration. The gas controller is mounted on the
optional auxiliary I/O daughter board.
 Cold Limit
This value can only be changed in ENGINEERING mode.
Enter a lower temperature limit. If the sensor temperature falls below this limit, the
gas flow is disabled.
 Hot Limit
This value can only be changed in ENGINEERING mode.
Enter an upper temperature limit. If the sensor temperature rises above this limit, the
heater is disabled.
