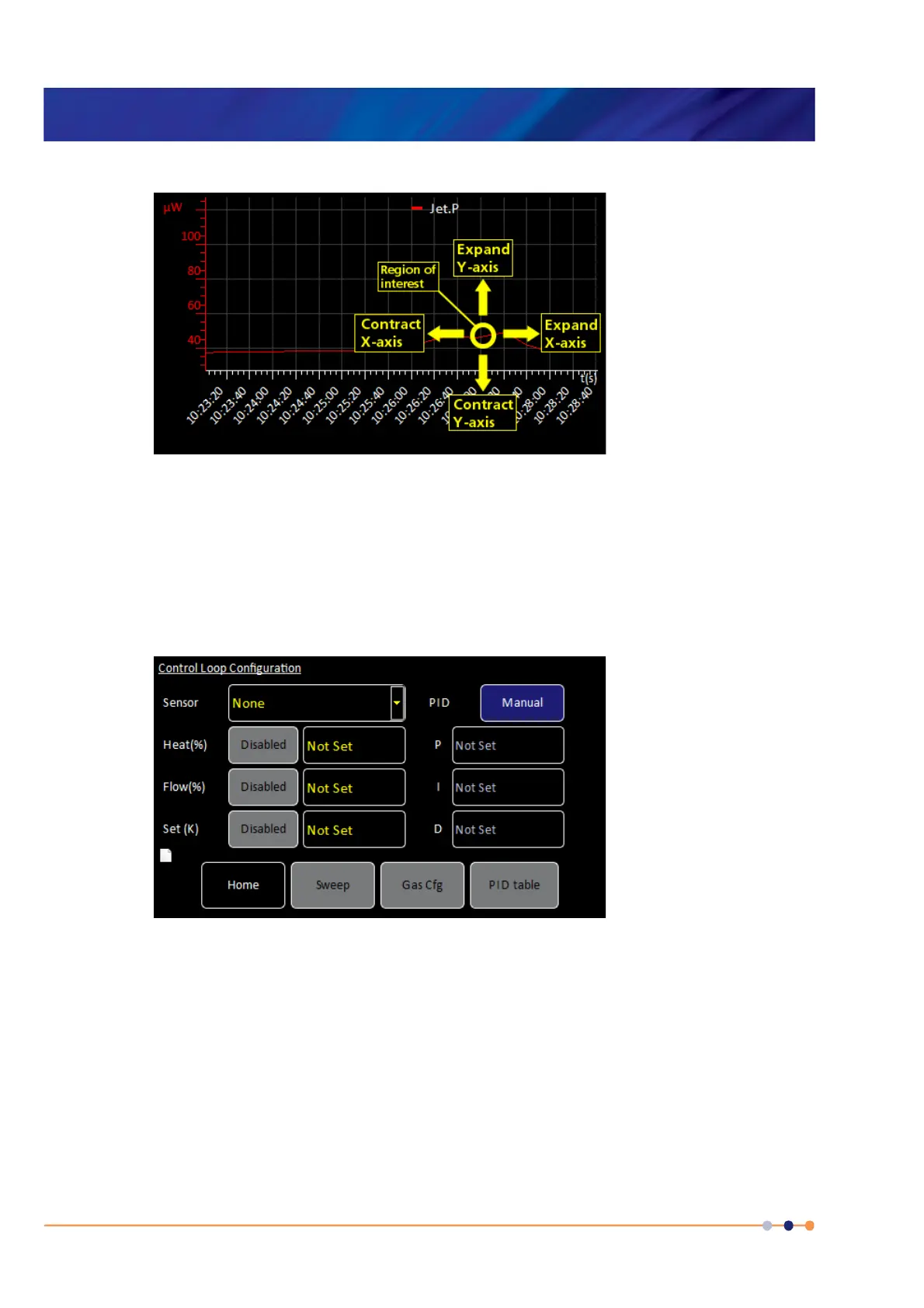

Figure 3-20 illustrates how to adjust the scaling of a plot.
Figure 3-20 Scaling a plot
3.2.9 Control Loop Configuration page
This page allows the user to configure a control loop. A control loop uses a temperature
sensor to measure the sample temperature, and an associated heater or gas controller
to control the sample temperature. An error message is displayed if this page is
accessed and neither a heater nor gas controller have been configured for this sensor.
Figure 3-21 Control Loop Configuration page
