Handbook
November 2011
/
59-UMC0071
/
Issue
01
Mercury
iTC
Page 20
OVERVIEW OF THE iTC
Original Instructions
2.1
System description
Figure
2-1

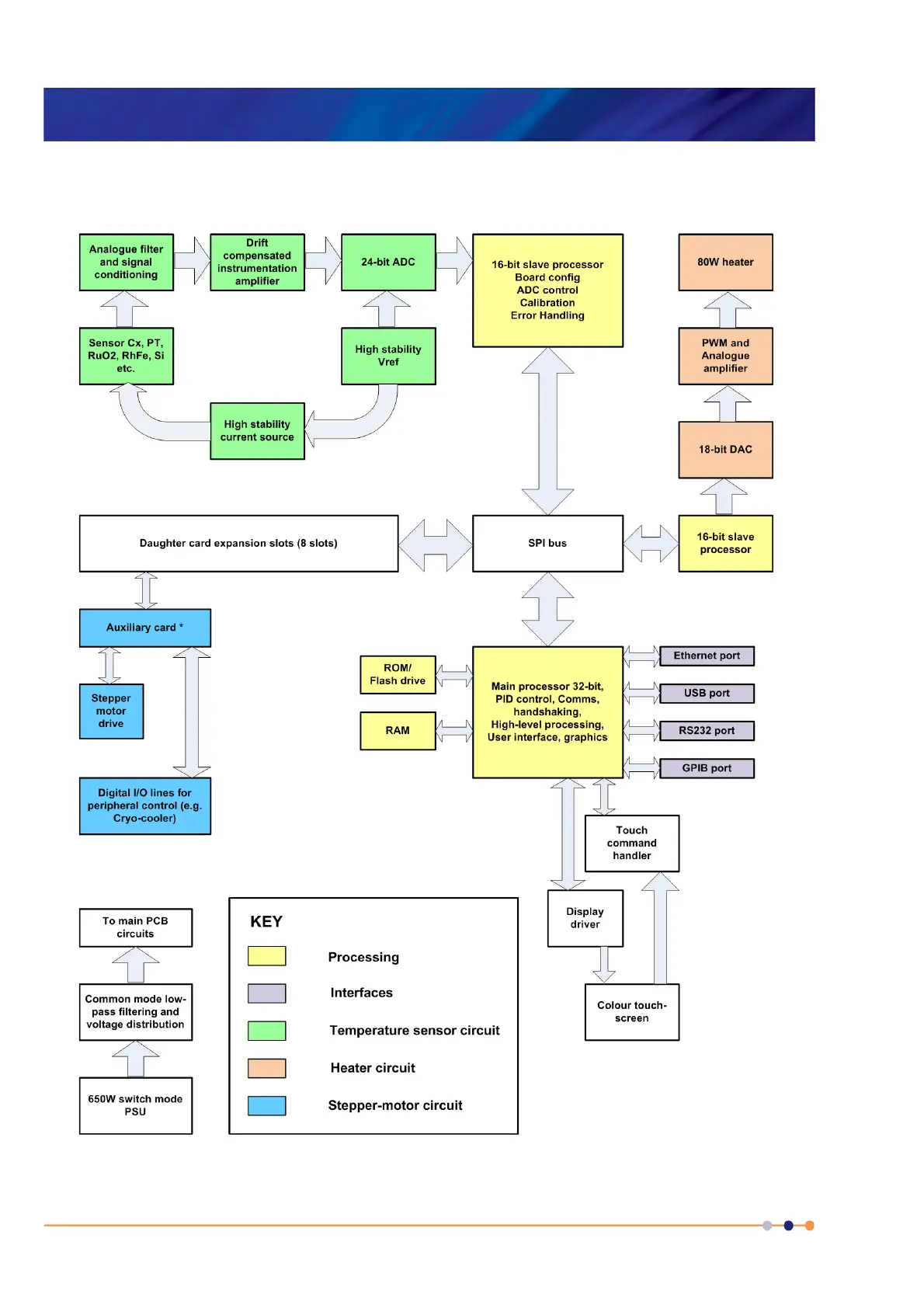

is a block diagram of the iTC.
Figure 2-1
Block diagram of the iTC
