AUXILIARY EQUIPMENT 24B
Adaptor for a hydraulic pump or a
steering pump with a splined drive
To remove and to fit24B.02
To remove
1 Release the cap screws and remove the adaptor
assembly from the rear of the timing case.
2 Check the gear, the spline and the bearings for
wear and other damage and renew the components
as necessary.
To fit

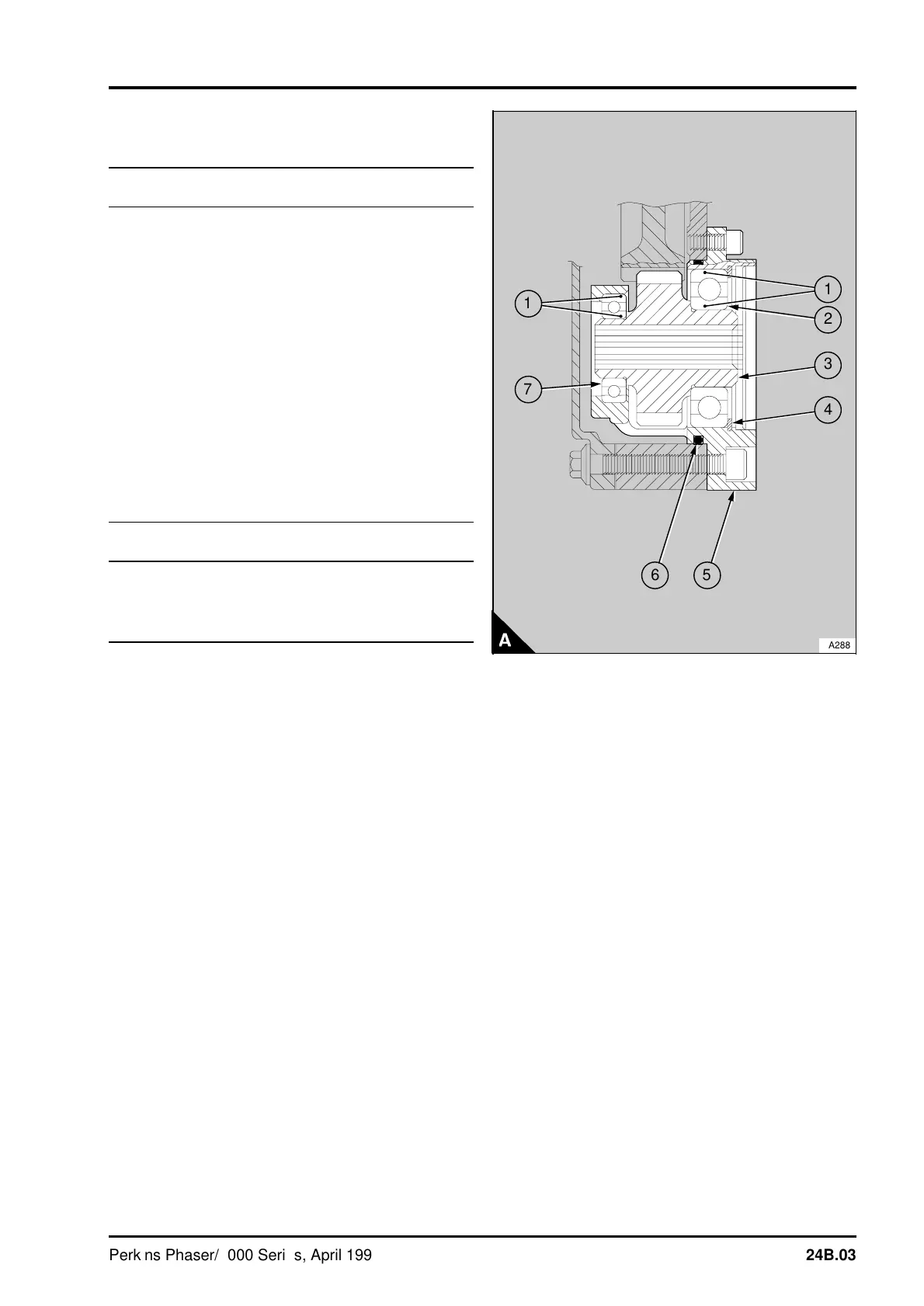

1 Fit a new "O" ring (A6) in its recess in the
housing (A5) and lightly lubricate it with clean
engine lubricating oil. Lubricate the bearings (A2)
and (A7) with clean engine lubricating oil. Fit the
adaptor assembly to the timing case and tighten the
cap screws.
To dismantle and to assemble24B-03
Consumable products:
POWERPART retainer (oil tolerant)
To dismantle
1 Remove the hydraulic pump or steering pump.
2Remove the adaptor assembly, operation
24B-02.
3 Remove the circlip (A4). Provide a support for
the flange face of the housing (A5). Use a suitable
adaptor on the front bearing (A7) to press the gear
and bearings out of the housing.
4 Remove the bearings from the gear (A3) with a
suitable gear puller.
a a
a a
a a
a a
1
a a
a a
a a
a a
2
a a
a a
a a
a a
a a
3
a a
a a
a a
a a
4
a a a
a
a
a
a
a
a
a a a
1
a a a
a
a
a
a
a
a
a a a
7
a a a
a
a
a
a
a
a
a a a
5
a a
a a
a a
a a
6
PA288
Perkins Phaser/1000 Series, April 1995 24B.03
