12 Technical data and ordering data
12.1 Technical data
Dimensions (nominal sizes in mm)
Width 45 mm
Height 125.9 mm
Depth 74 mm
Note on dimensions The specified depth applies when using a TH 35-7.5 DIN rail (according to EN
60715), e.g., NS 35/7.5, etc., from Phoenix Contact, see "Ordering data" on
page 148.

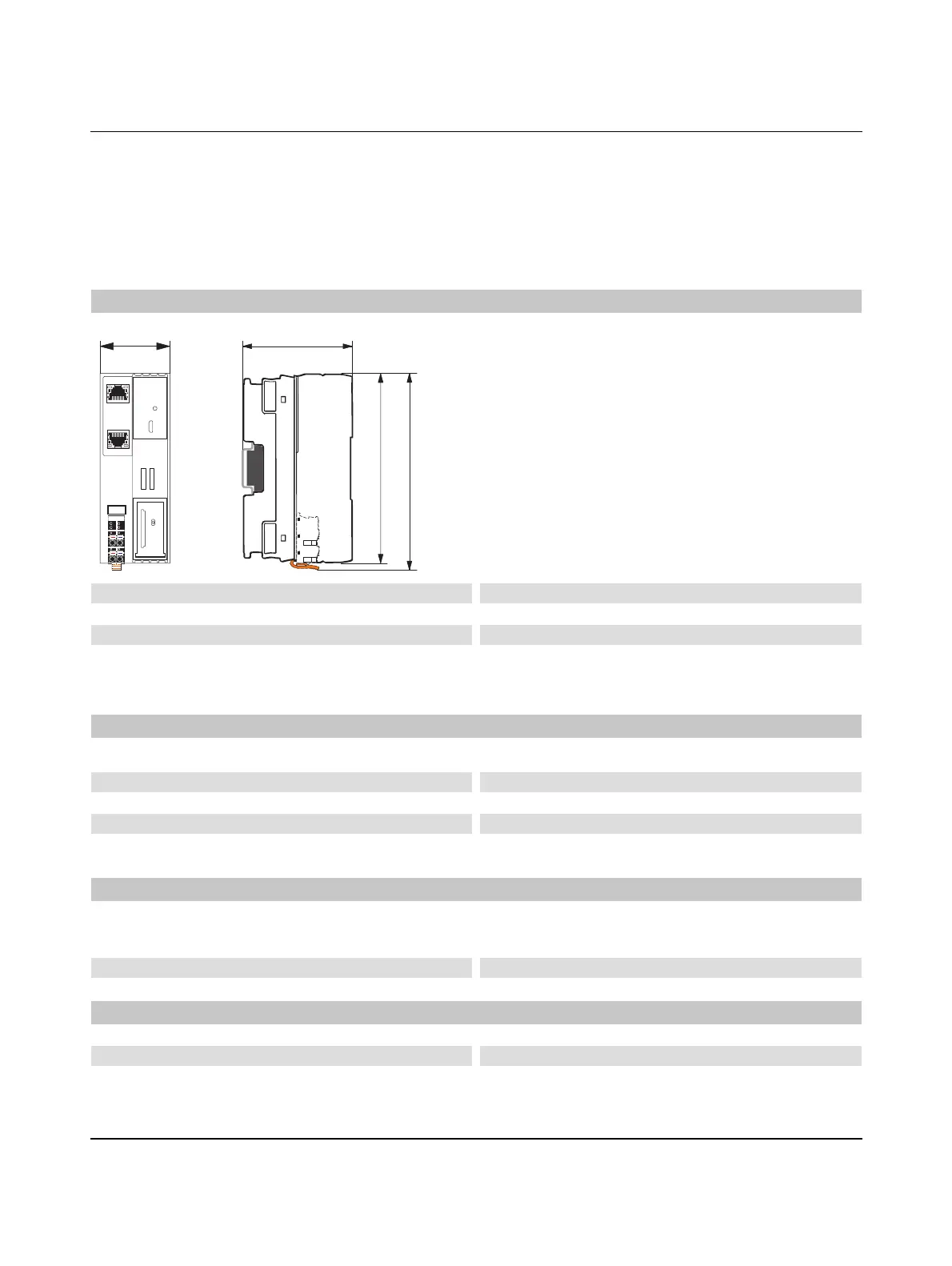

45 74
122,4
125,9
8482A011
General data
Color Traffic gray A
RAL 7042
Weight 195 g, approximately (including bus base module and supply plug)
Degree of protection IP20 (EN 60529:1991)
Protection class III, IEC 61140, EN 61140, VDE 0140-1
Coated PCBs AXC 1050 XC only
System limits of the controller
Amount of process data 8192 bits, maximum (per station)
4096 bits, maximum (input)
4096 bits, maximum (output)
Number of supported devices 63, maximum (per station)
Axioline F local bus interface
Connection method Connection for bus base module
Transmission speed 100 Mbps
