4.4 Mounting the controller
• Disconnect the power to the Axioline F station.
• Mount the left end bracket on the Axioline F station.
Mounting bus base
modules
• First install the bus base module for the controller and then all bus base modules nec-
essary for the Axioline F station on the DIN rail (A in Figure 4-4).
• Push each subsequent bus base module into the connection of the previous bus base
module (B in Figure 4-4).

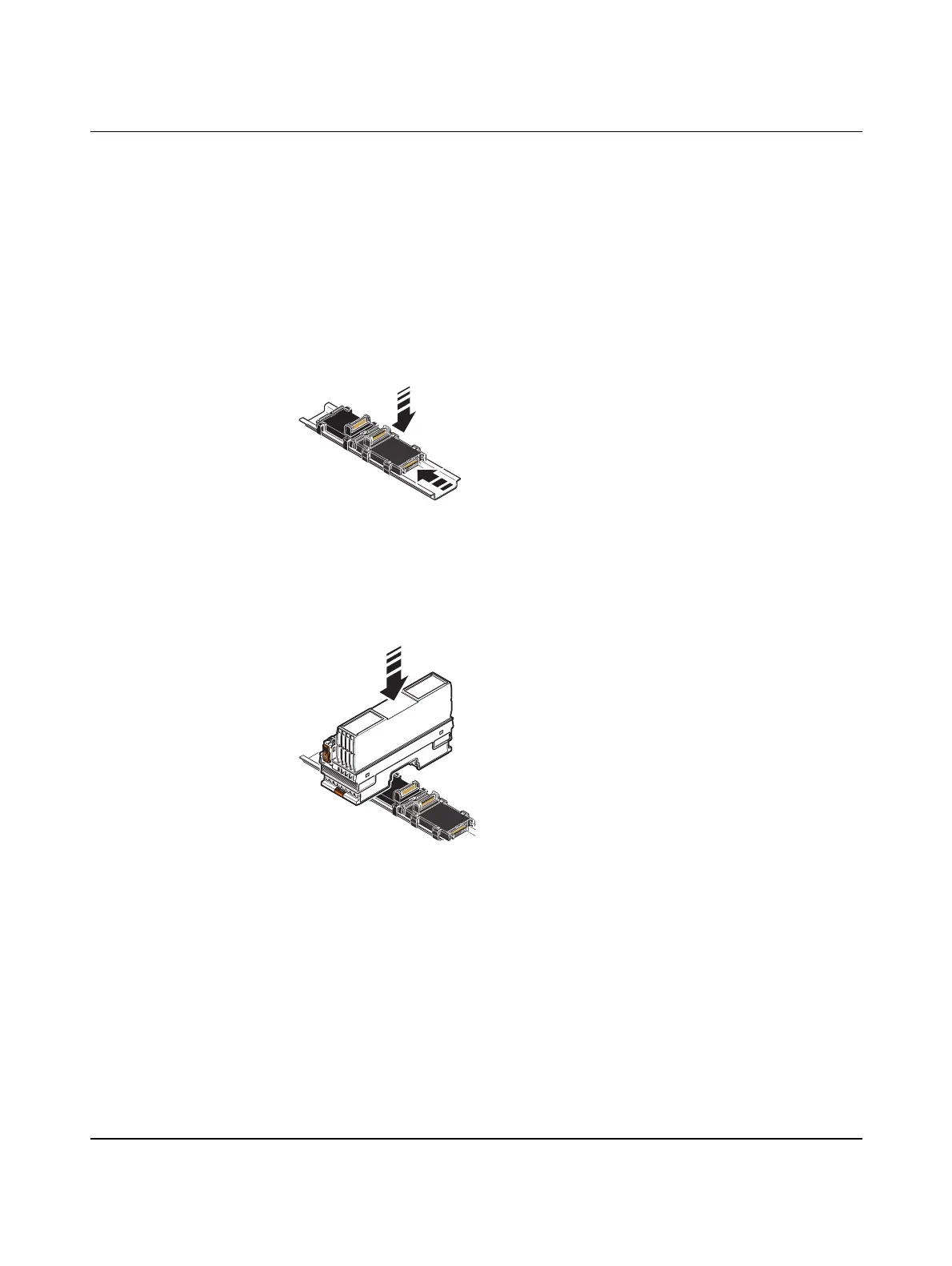

Figure 4-4 Mounting the bus base modules
Snapping on the controller • Place the controller vertically on the first bus base module until it snaps into place with
a click.
Make sure that the device plug for the bus base connection is situated above the cor-
responding socket on the bus base module.
Figure 4-5 Snapping on the controller
A
B
