Description of the AXC 1050 (XC)
8482_de_03 PHOENIX CONTACT 29
3.6 Mode selector switch
The mode selector switch is used to define the operating state of the controller.
The RUN/PROG and STOP positions have a latching function and the MRESET position
has a pushbutton function. After releasing the switch in the MRESET position, it returns to
the STOP position.

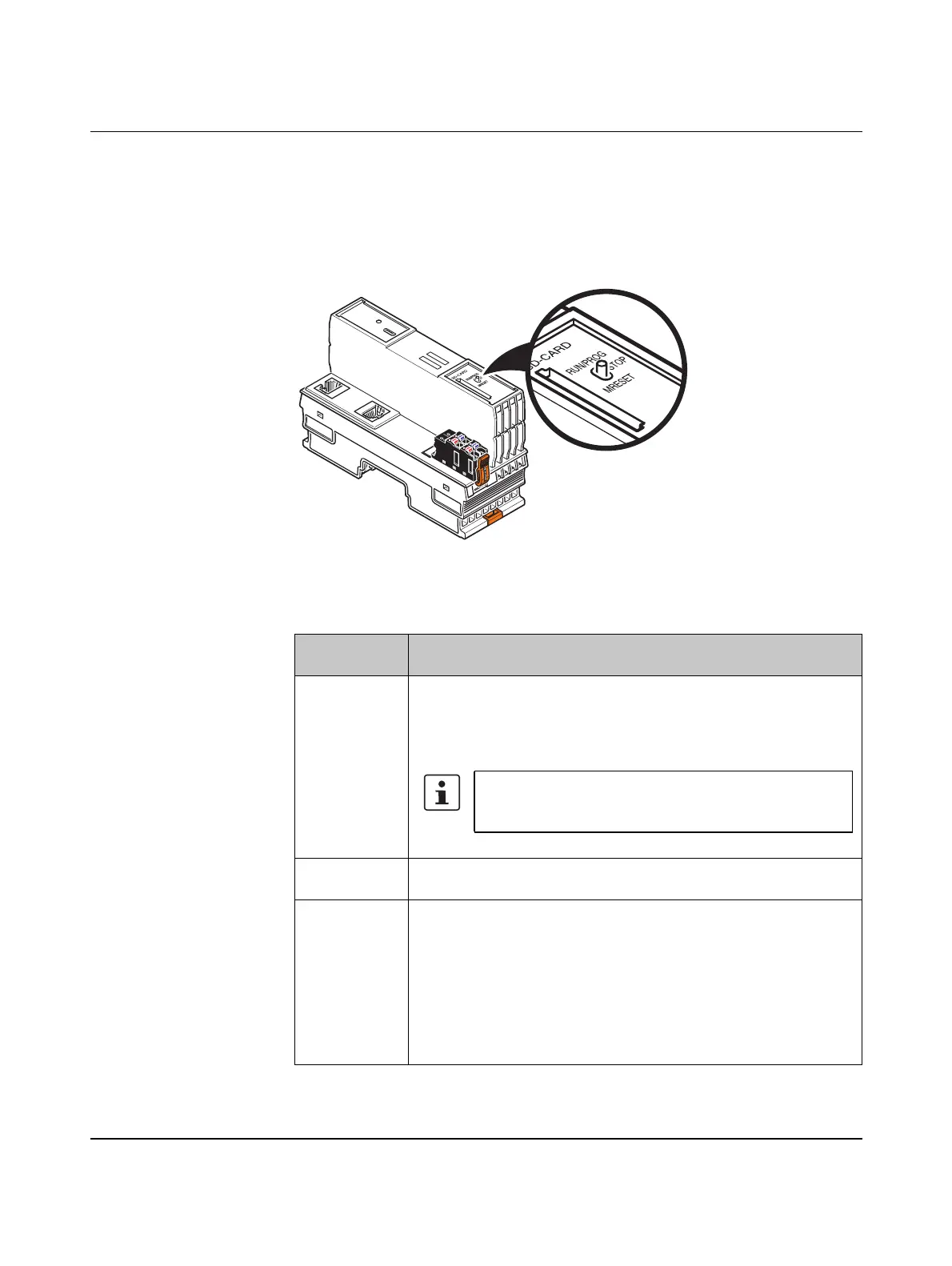

Figure 3-8 Mode selector switch
Table 3-2 Controller operating modes
Operating
mode
Description
RUN/PROG The controller is in the RUN state. The application program is being
processed.
The PC Worx (Express) software can be used for program and config-
uration modifications as well as for the online monitoring function.
STOP The controller is in the STOP state. Application program processing
has been stopped.
MRESET Retain data and the application program are deleted.
Follow these steps to delete the retain data and the application pro-
gram:
• Hold the mode selector switch in the MRESET position for three
seconds.
• Release the mode selector switch for fewer than three seconds.
• Hold the mode selector switch in the MRESET position for three
seconds.
8482B004
The application program is not processed if a controller er-
ror has occurred or if the application program has been
stopped by PC Worx (Express).
