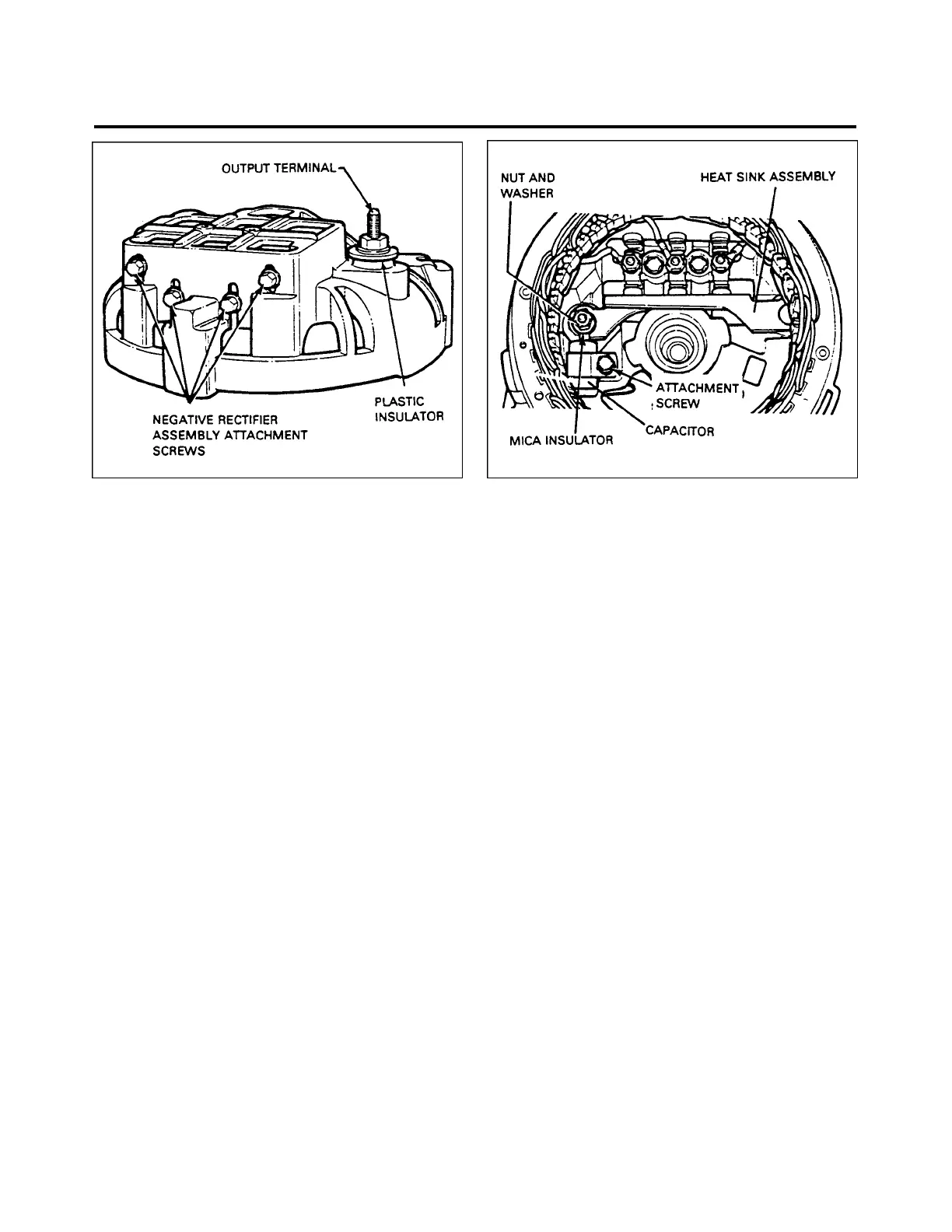

Figure 24-l0. Rectifier and Heatsink Figure 24-11. Rectifier End Shield Assembly
Assembly Removal
REMOVAL OF RECTIFIER AND HEATSINK ASSEMBLY (figure 24-l0)
—NOTE—
If negative heatsink rectifier straps are under positive heatsink
straps, proceed to step 2.
1. Remove four screws securing negative rectifier and heatsink.assembly to rectifier end shield and lift
heatsink assembly from end shield.
2. Remove nut and washer from BAT terminal and removc round plastic insulator.
3. Turn rectifier end shield over and remove nut and washer from end shield stud.
4. Remove capacitor attaching screw and lift out capacitor, insulated washer, and heatsink assembly.
Remove round plastic insulator from BAT terminal hole.
5. Remove mica insulator from end shield stud.
6. If negative heatsink rectifier straps were under positive heatsink rectifier straps, perform step 1.
24 - 32 - 00
Page - 24 - 18
Reissued: August 1, 1986
