ACCESS AND INSPECTION PROVISIONS
—CAUTION—
Before entering aft section of fuselage, be sure airplane is
supported at tail skid.
Airplane access and inspection panels are shown in figure 6-3. All access plates and panels are secured by
either metal fasteners or screws. To enter aft section of fuselage, open baggage compartment door and remove
access panel.

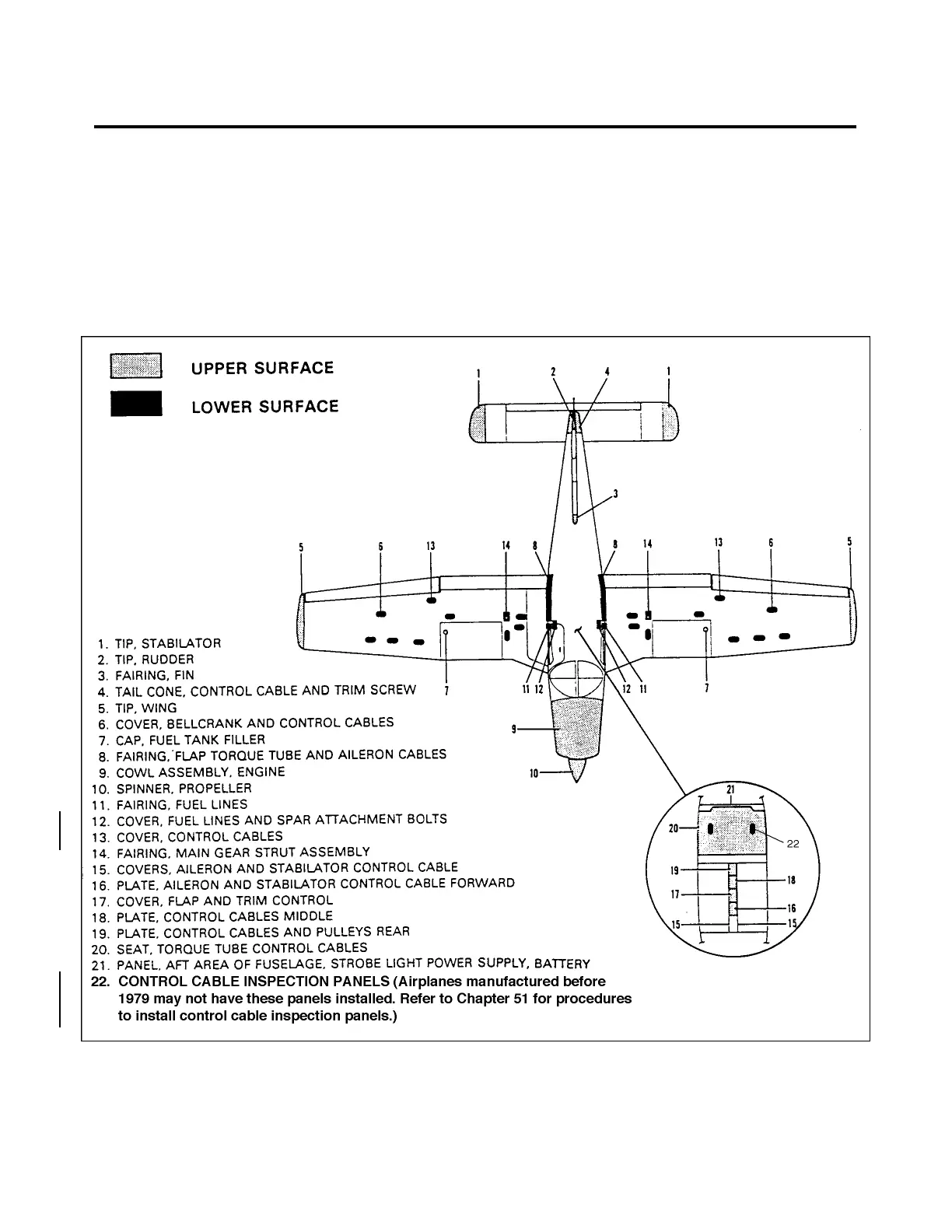

Figure 6-3. Access Plates and Panels
6 - 30 - 00
Page 6 - 05
Interim Revision: February 15, 1995
1B19
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
