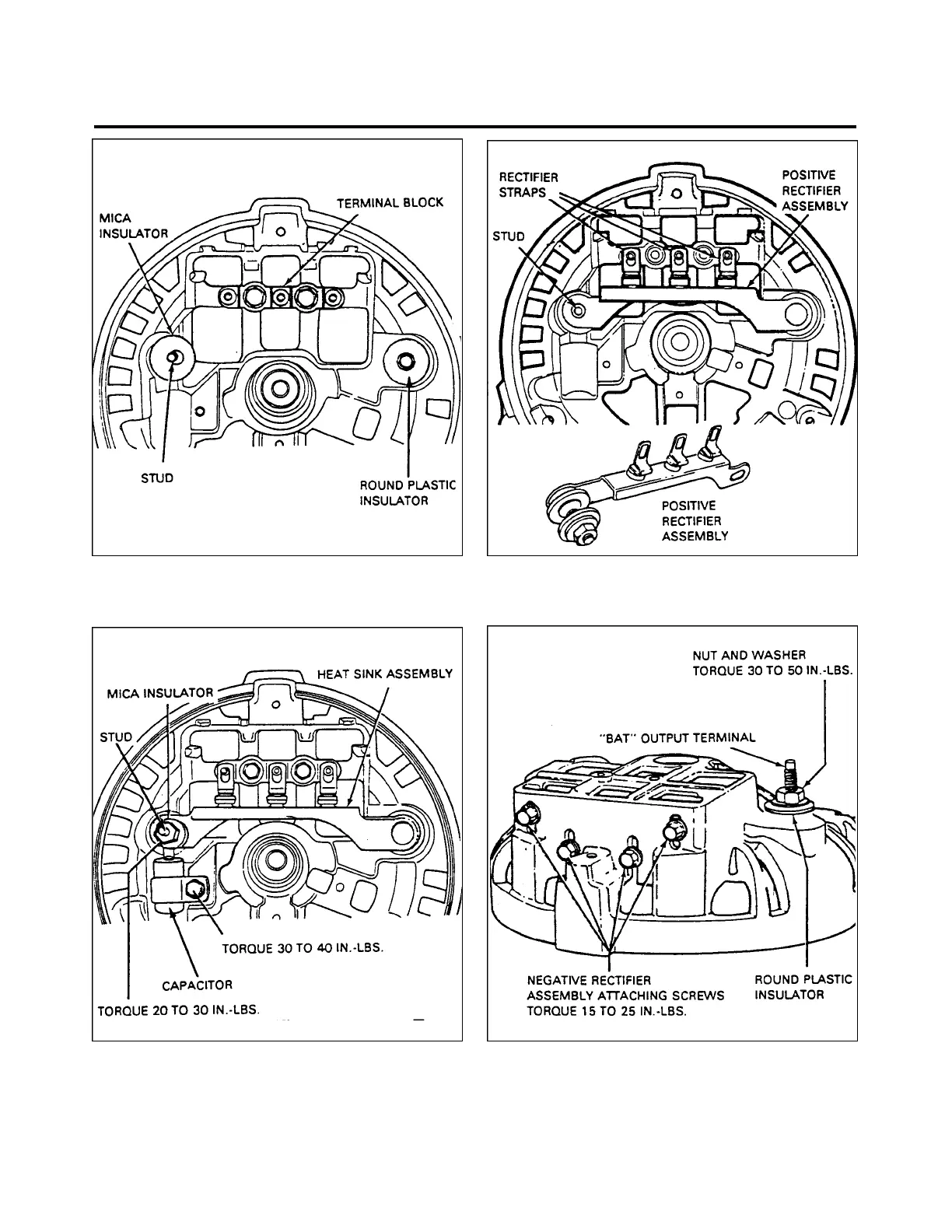

Figure 24-22. Installation of Insulators Figure 24-23. Installation of Positive
Rectified Assembly
Figure 24-24.Installation of Capacitor Figure 24-25. Installation of Battery
Output Insulator
24 - 32 - 00
Page - 24 - 24
Reissued: August 1, 1986
1I23
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
