CARBURETOR AIRBOX
REMOVAL OF CARBURETOR AIRBOX
1. Remove lower engine cowling.
2. Disconnect air inlet hose from front of airbox.
3. Disconnect alternate air hose from left side of airbox.
4. Disconnect alternate air control cable from right side of airbox.
5. Remove three screws and locktooth washers that hold airbox to airbox support. Note location and
quantity of shim washers (if any) between airbox and airbox support.
6. Remove four bolts and washers holding airbox to carburetor.
7. Remove airbox and gasket.
INSTALLATION OF CARBURETOR AIRBOX
1. Attach airbox and gasket to carburetor body. Safety bolts in pairs.
2. Before securing airbox to its support, check for any gaps between mating surfaces. Add AN960-8 or
AN960-8L washers between mating surfaces as required to eliminate any gap.
3. Secure airbox to support.
4. Connect alternate air hose to left side of airbox.
5. Connect air intake hose to front of airbox.
6. Connect alternate air cable to right side of airbox.
7. Check function of alternate air control cable from inside the cabin.
8. Hold lower cowling in place.
9. Attach alternate air hose and air inlet hose to cowling.
10. Reconnect landing light electrical lead.
11. Install lower cowling.

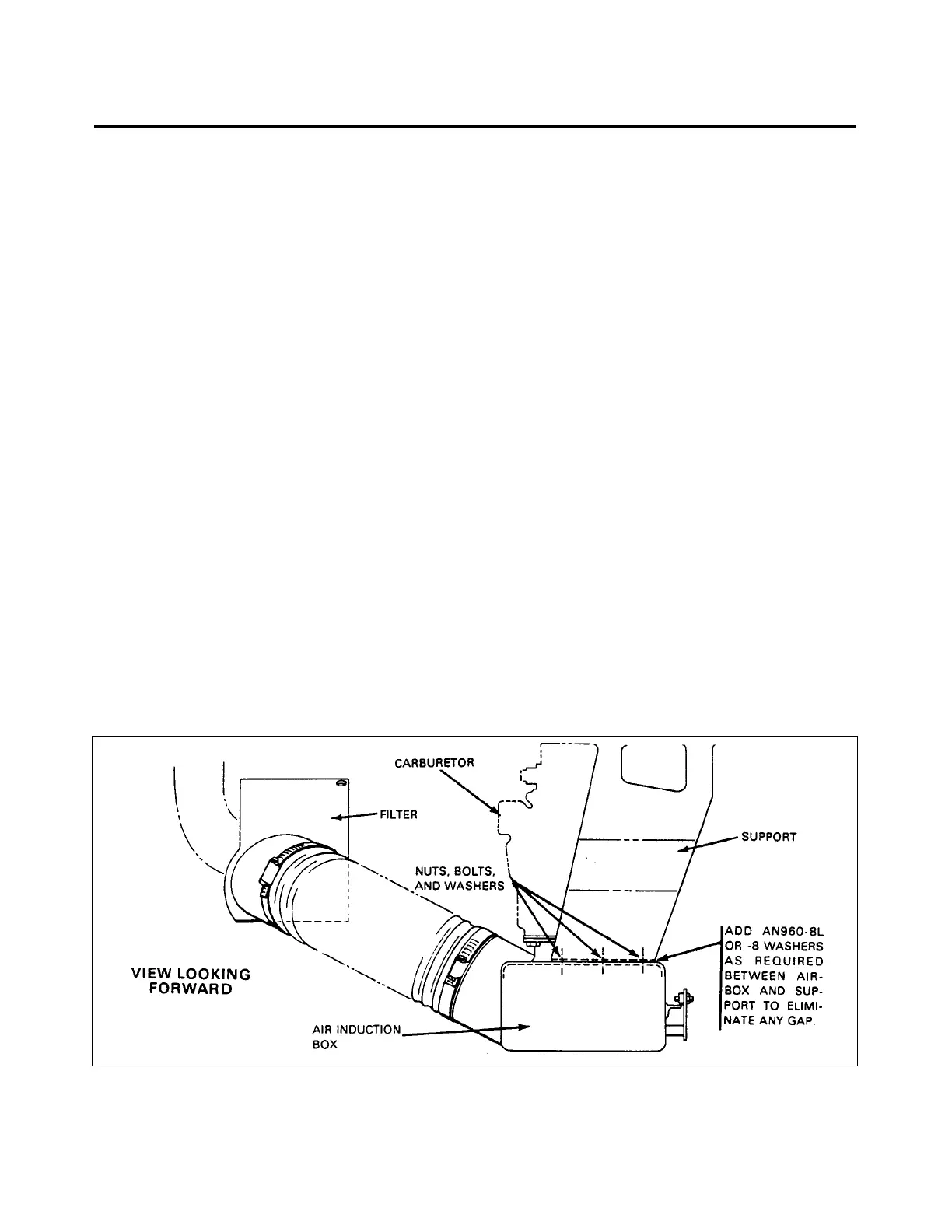

Figure 71-6. Rear View of Carburetor Airbox
71 - 62 - 00
Page - 71-18
Reissued: August 1, 1986
2I9
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
