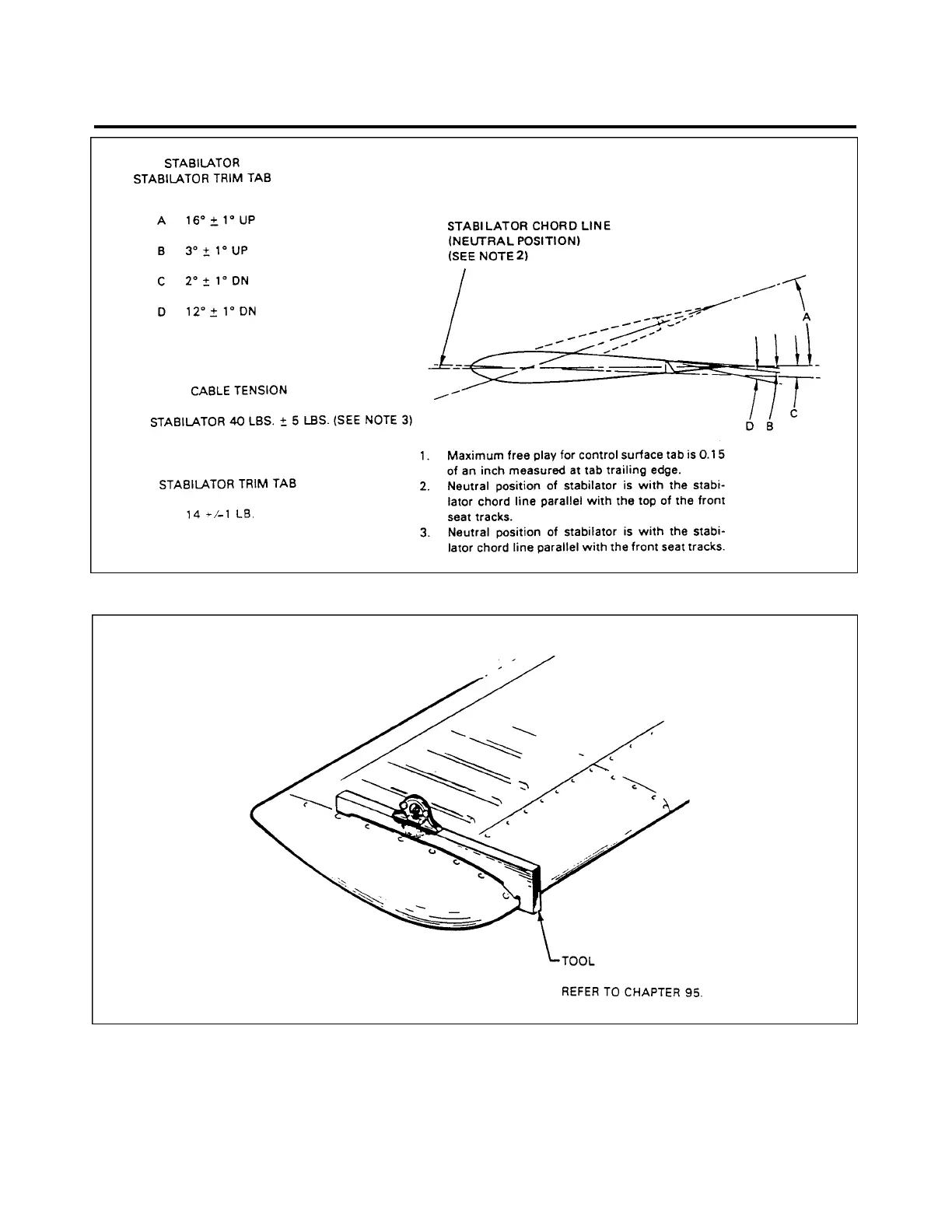

Figure 27-l5. Stabilator and stabilator Trim Travel Adjustments
Figure 27-l6. Stabilator Rigging Tool
27- 31 - 00
Page 27 - 30
Reissued: August 1, 1986
1L5
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
