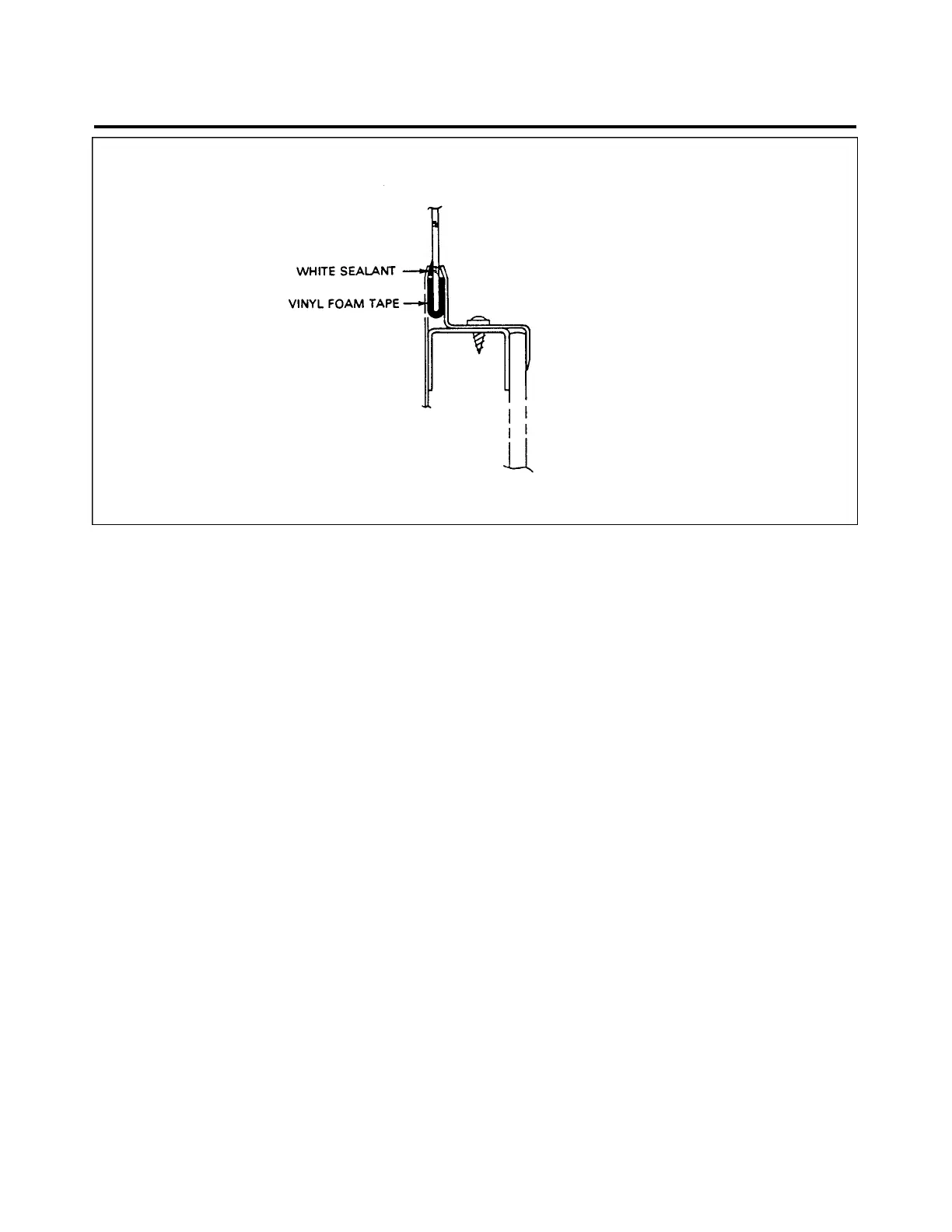

Figure 56-2. Side Window Installation, Single Pane (Typical)
1. Remove retainer molding from around window by removing attachment screws.
2. Carefully remove window from frame.
—NOTE—
A damaged window should be saved to provide a pattern for
shaping the new window.
3. Remove excess tape and sealer from window frame and molding.
INSTALLATION OF SIDE WINDOWS (figure 56-2)
1. Cut or grind the new window to same dimension as window removed.
2. Apply Behr-Manning vinyl foam tape number 560 or equivalent to both side of window around outer
edges.
3. Apply Behr-Manning sealant number PRC 5000 or equivalent, completely around outer surface of
windows at all attachment flanges.
4. Insert window in frame and install retainer moldings.
5. Secure molding with attachment screws and tighten until vinyl foam tape is 25% compressed by
retainers.
6. Remove excess exposed sealer and tape.
—END—
56 - 21 - 00
Page - 56-03
Reissued: August 1, 1986
2G11
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
