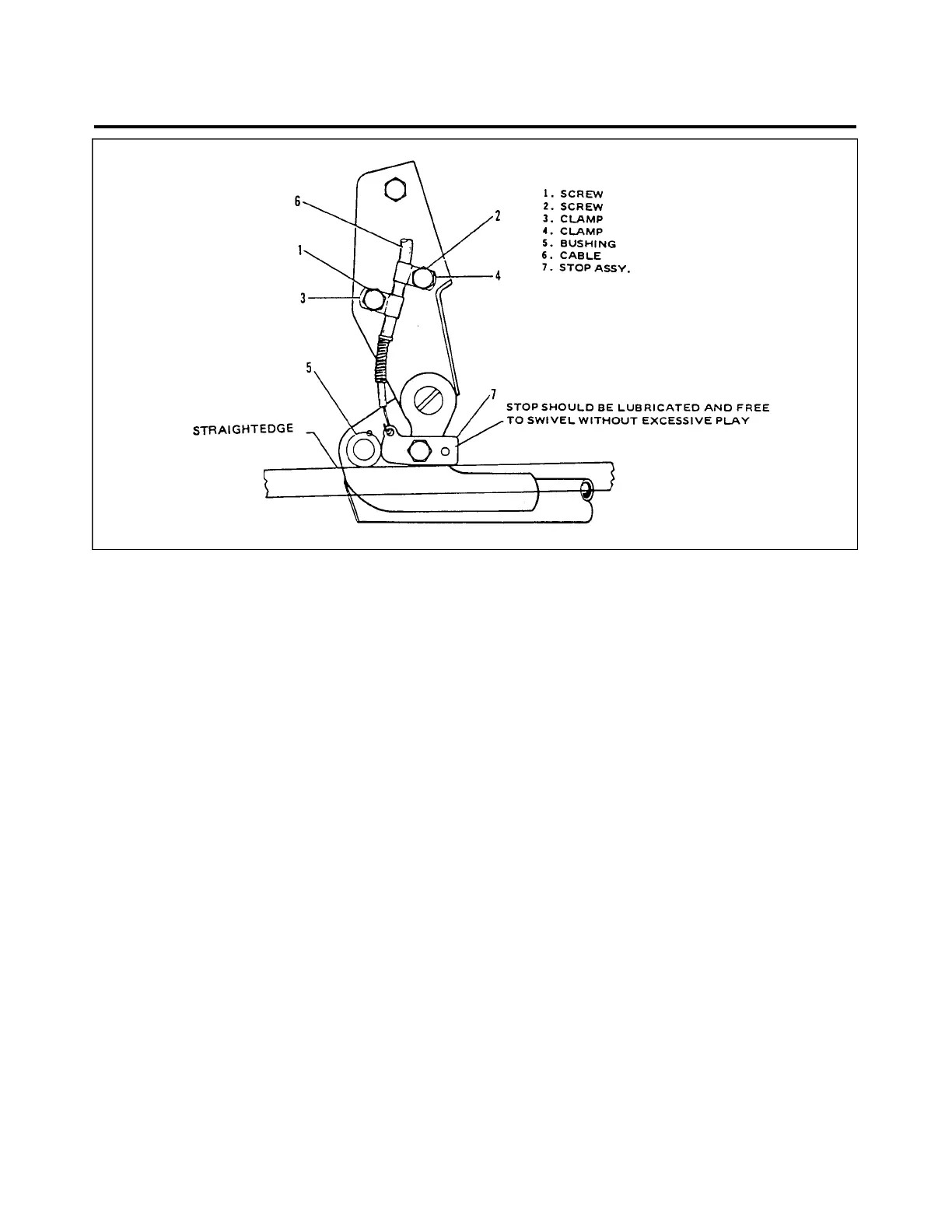

Figure 25-1. Seat Back Lock
FLIGHT COMPARTMENT
RIGGING INSTRUCTIONS - SEAT BACK LOCK AND RELEASE (figure 25-1)
1. Loosen screws and clamps. (Push-pull cable is able to move within the clamps.)
2. Place a straightedge along lower surface of seat back release bushing.
3. Adjust push-pull cable by raising or lowering it until lower surface of stop assembly is parallel to
straightedge.
4. Secure push-pull cable in this position by tightening screws on clamps. Lubricate stop. Ensure that
stop is free to swivel without excess play.
5. Push on seat back with stop assembly in an engaged position to check engagement. Rotate seat back
release handle and check for disengagement of seat back.
25 - 11 - 00
Page - 25 - 01
Reissued: August 1, 1986
1J19
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
