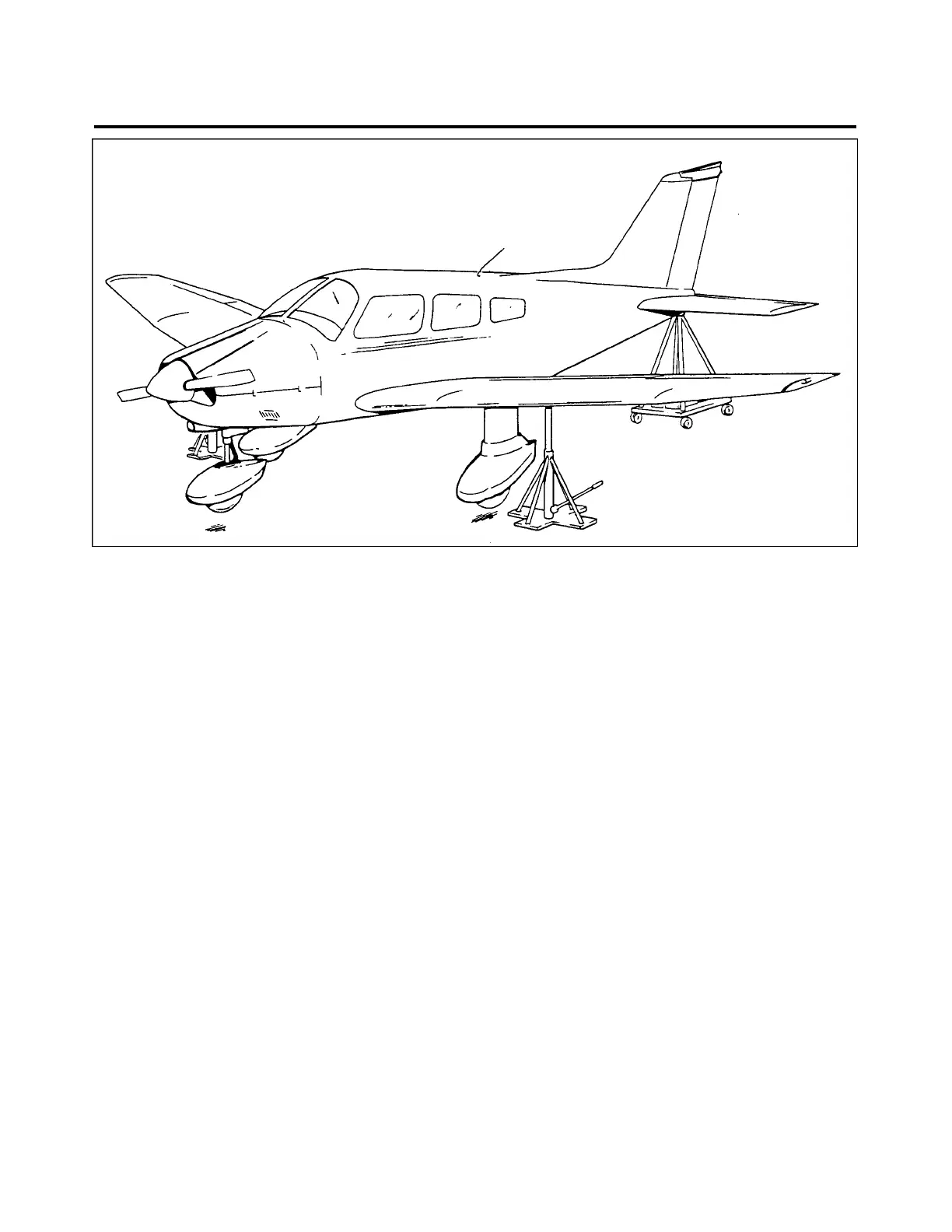

Figure 7-l. Jacking Arrangement
JACKING
Jacking airplane is necessary to service landing gear and to perform other service operations.
Proceed as follows:
—CAUTION—
Be sure to apply sufficient tail support ballast to prevent airplane
from tipping forward.
1. Place jacks under jack pads on front wing spar. (Refer to figure 7-1.)
2. Attach tail support to tail skid. Place approximately 250 pounds ballast on base of tail support to hold
tail down.
3. Raise jacks until all three wheels are off ground.
—END—
7 - 10 - 00
Page - 7 - 01
Reissued: August 1, 1986
1B23
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
