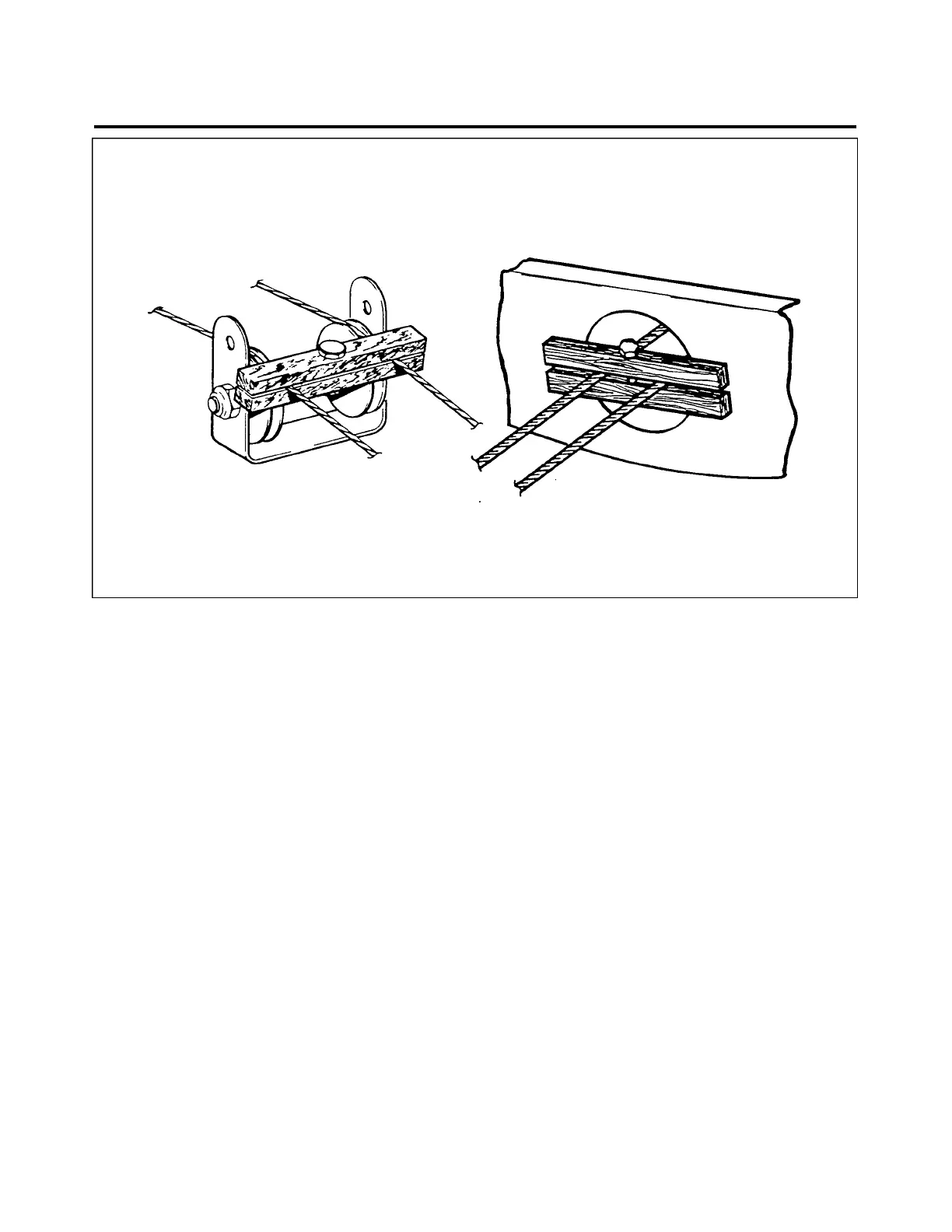

Figure 27-l7. Methods of Securing Trim Cables
g. If installed, remove cable pulleys within aft section of fuselage at station l56.5 by removing nut,
washer, bushing, and bolt.
h. With cables disconnected from trim control wheel, draw cable(s) through floor tunnel.
INSTALLATION OF STABILATOR TRIM ASSEMBLY (FORWARD) (figure 27-18)
l. Install trim control wheel with drum as follows:
a. Wrap right trim cable on trim drum by inserting swaged ball of cable in slot provided in side (right
side) of drum that mates with control wheel, and looking at this side, wrap drum with three wraps
of cable in a clockwise direction.
b. Attach control wheel to cable drum by aligning long lug of drum with long slot of wheel and
pushing two pieces together.
c. Wrap left trim cable on drum by inserting swaged ball of cable in slot provided in flanged side
(left side) of drum and looking at this side, wrap drum with three wraps of cable in
a clockwise direction.
d. Lubricate and install bushing in control wheel and drum.
27- 33 - 00
Page 27 - 33
Reissued: August 1, 1986
1L8
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
