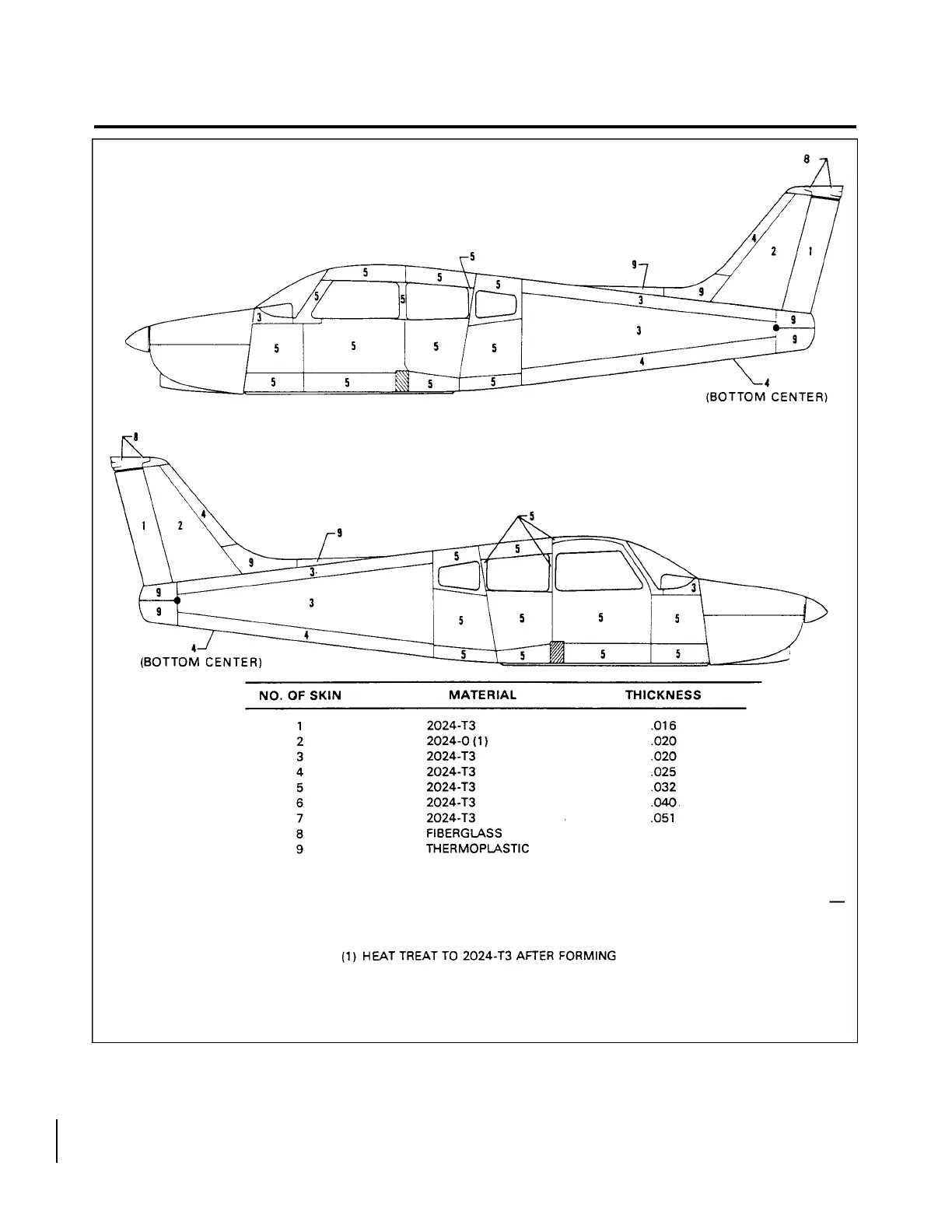

Figure 51-1. Skin Materials and Thickness
51 - 11 - 00
Page 51 - 03
Reissued: August 1, 1986
2E23
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
