INTERIOR PLACARDS AND MARKINGS
13. PLACARD - RUDDER TRIM 43. PLACARD - WARNING
21. PLACARD - HEATER AND DEFROST 44. PLACARD - PITCH TRIM
22. PLACARD - CLIMATE CONTROL CENTER 45. PLACARD - WARNING, ELT
23. PLACARD - CIRCUIT PROTECTOR, LOWER 46. PLACARD - ALTITUDE REPORTER INSTALLED
24. PLACARD - CIRCUIT PROTECTOR, UPPER 47. PLACARD - MIKE AND PHONE
25. PLACARD - LANDING CHECKLIST 48. PLACARD - MIKE JACK (WITH CONSOLE MIKE, JACK)
26. PLACARD - TAKE-OFF CHECKLIST 54. PLACARD - WARNING
27. PLACARD - ANNUNCIATOR, PRESS TO TEST 55. PLACARD - AUTOFLITE ll
28. PLACARD - MANEUVERING LIMITATIONS 56. PLACARD - OMNI COUPLER SWITCH
29. PLACARD - MANEUVERING SPEED 57. PLACARD - VENT FAN
30. PLACARD - FUEL 58. PLACARD - RADIO POWER ON-OFF
31. PLACARD - CROSSWIND COMPONENT 59. PLACARD - EMERGENCY BUS SWITCH
32. PLACARD - AIR CONDITIONING DOOR LIGHT 61. PLACARD - CAUTION
34. PLACARD - CAR8URETOR HEAT 63. PLACARD - CARB. ICE DEFROSTER
40. PLACARD -.INSTRUMENT LIGHTS, 64. PLACARD - SENSITIVITY
BLACK BACKGROUND 65. PLACARD - ENGINE CONTROLS
41. PLACARD - INSTRUMENT LIGHTS, PANEL, 74. PLACARD - NAV 1 OFF NAV 2
BLACK BACKGROUND 75. PLACARD - ON-OFF (TOGGLE TRIM)
76. PLACARD - CAUTION (REDUCE AMP LOAD)

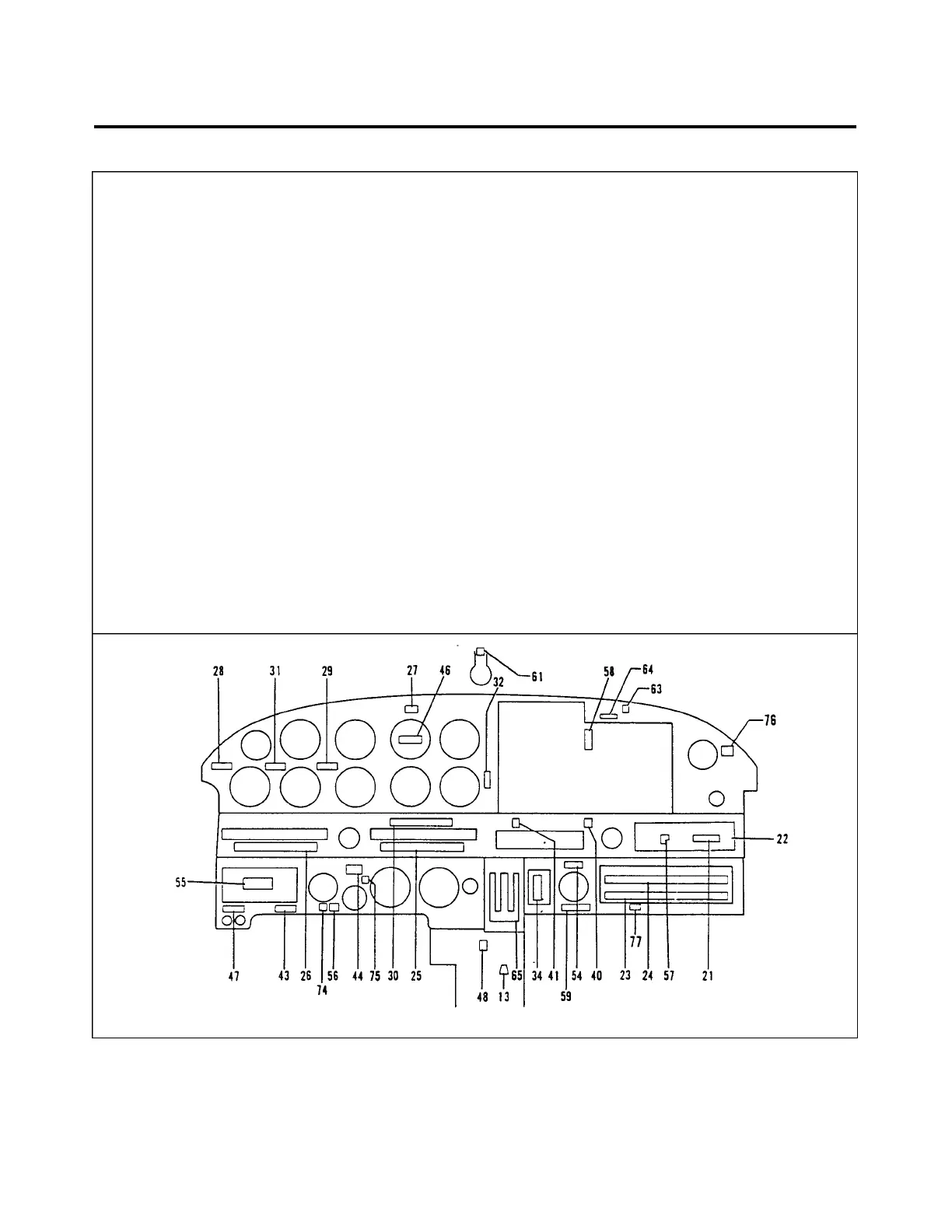

Figure l l-l. Placards and Decals (cont)
11 - 30 - 00
