Piper Dakota - Maintenance of Propeller; Propeller Assembly; Removal of Propeller; Typical Nicks and Removal Method

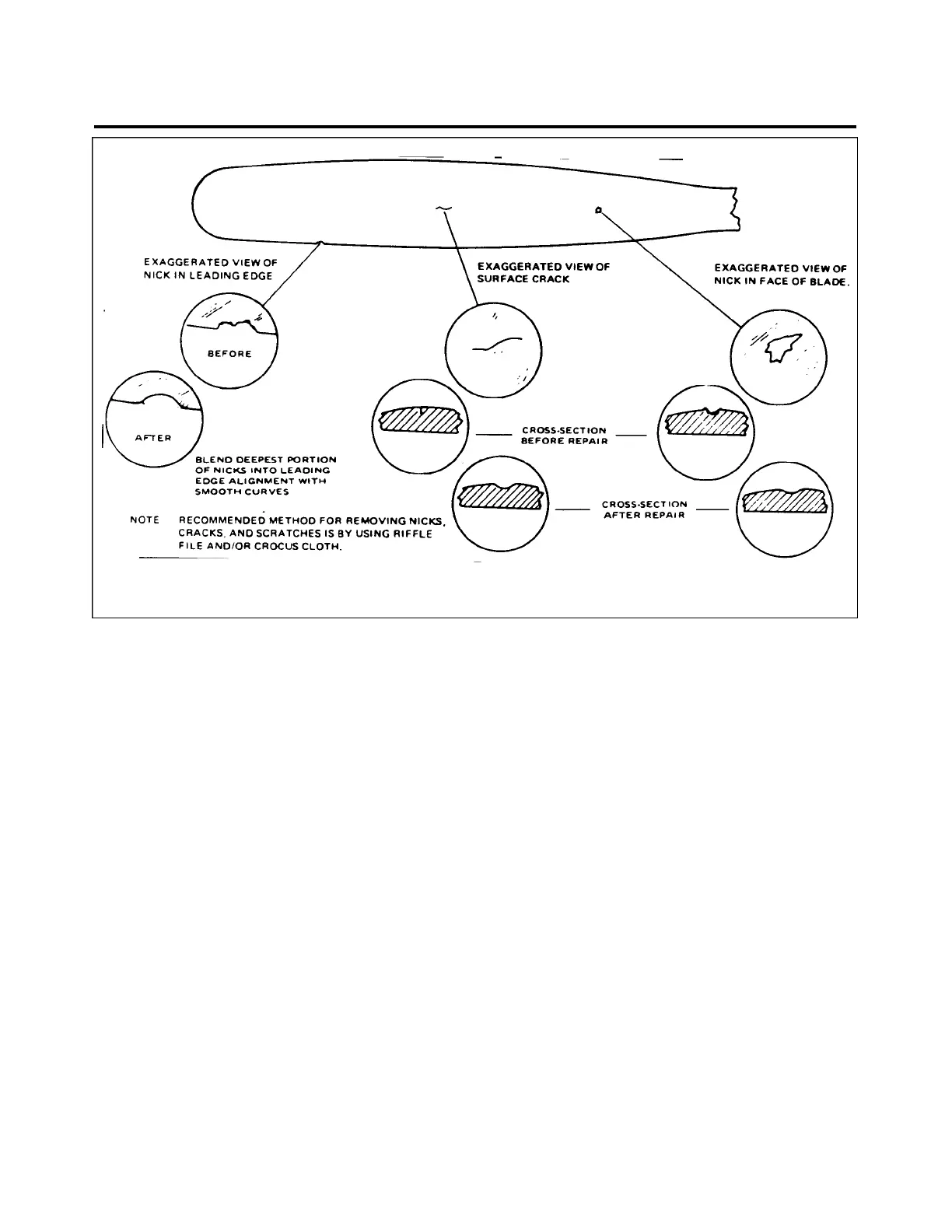

Figure 61-1. Typical Nicks and Removal Method
GENERAL
PROPELLER ASSEMBLY
MAINTENANCE OF PROPELLER
REMOVAL OF PROPELLER (figure 61-2)
—WARNING—
Master and magneto switches must be OFF before any work is
done on the propeller assembly.
1. Ensure that master and magneto switches are OFF.
2. Move fuel selector to OFF position.
3. Move mixture control to IDLE CUT-OFF.
4. Note position of each component to facilitate reinstallation.
5. Remove screws from around spinner assembly and remove spinner.
6. Remove safety wire from six propeller mounting nuts on studs and remove studs.
7. Place a drip pan under propeller to catch oil spillage.
8. Remove propeller.
61 - 11 - 00
Page - 61-01
Reissued: August 1, 1986
2H4
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
