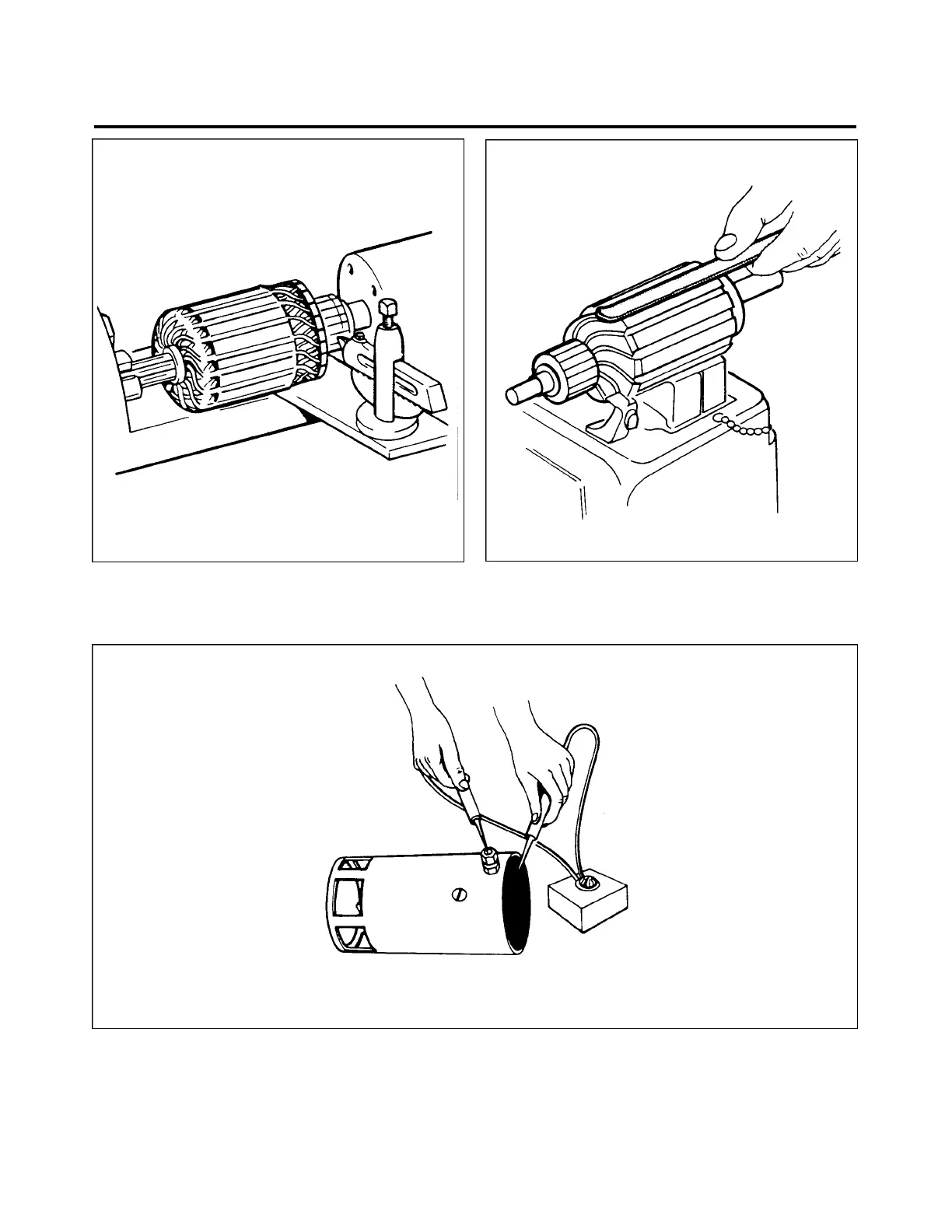

Figure 80-2. Turning Starting Figure 80-3. Testing Motor Armature
Motor Commutator for Shorts
Figure 80-4. Testing Motor Fields for Grounds
80 - 12 - 00
Page 80 - 06
Reissued: August 1, 1986
2L2
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
