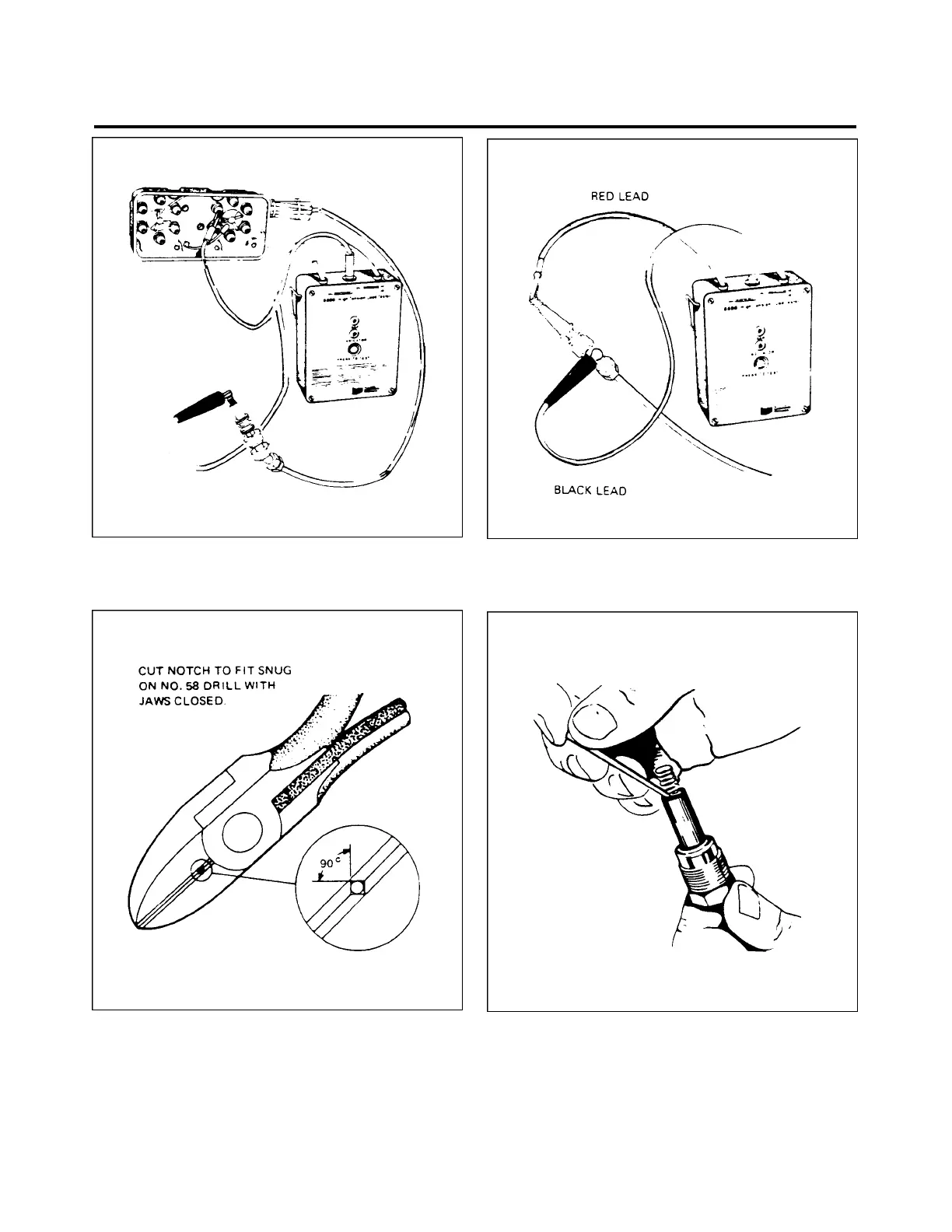

Figure 74-20. Checking Harness Lead Figure 74-21. Checking Harness Lead
Continuity lnsulation Resistance
Figure 74-22. Modified Pliers Figure 74-23. Removing Spring From
Lead Assembly
74 - 21 - 00
Page - 74-19
Reissued: August 1, 1986
2J15
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
