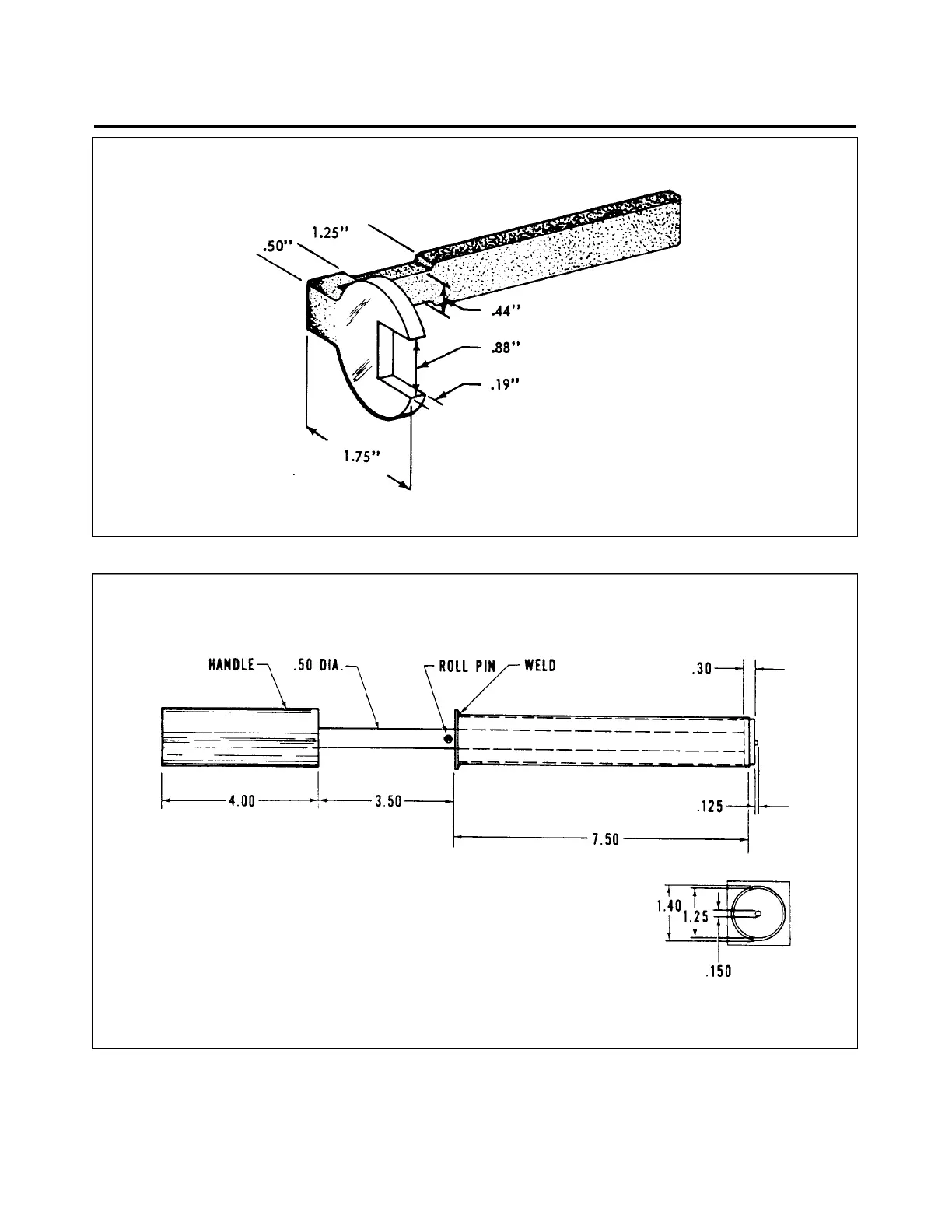

Figure 95-4. Fabricated tool for Baggage Door Lock
Figure 95-5. Retainer Ring Tool
95 - 10 - 00
Page 95 - 05
Reissued: August 1, 1986
3D7
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
