ELECTRICAL SCHEMATICS

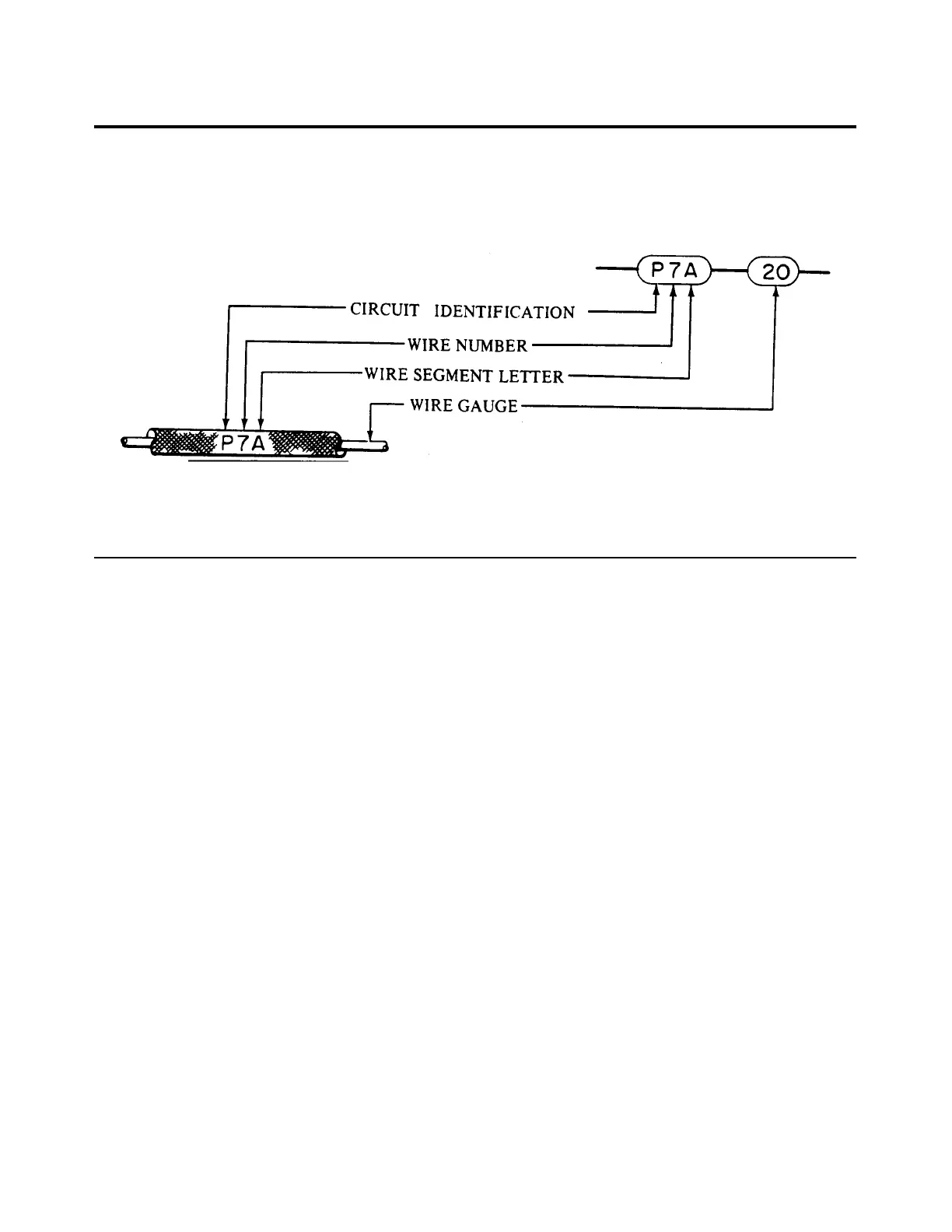

ELECTRICAL WIRE CODING
CHART 9106. ELECTRICAL WIRE CODING
CIRCUIT FUNCTION
LETTER CIRCUITS
A AUTOPILOT
C CONTROL SURFACE
E ENGINE INSTRUMENT
F FLIGHT INSTRUMENT
G LANDING GEAR
H HEATER - VENTILATING &DEICING
L LIGHTING
P POWER
Q FUEL & OIL
RP RADIO POWER
RG RADIO GROUND
RZ RADIO AUDIO & INTERPHONE
J IGNITION
W WARNING
K STARTER
91 - 31 - 00
Page 91 - 19
Reissued: August 1, 1986
3B13
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
