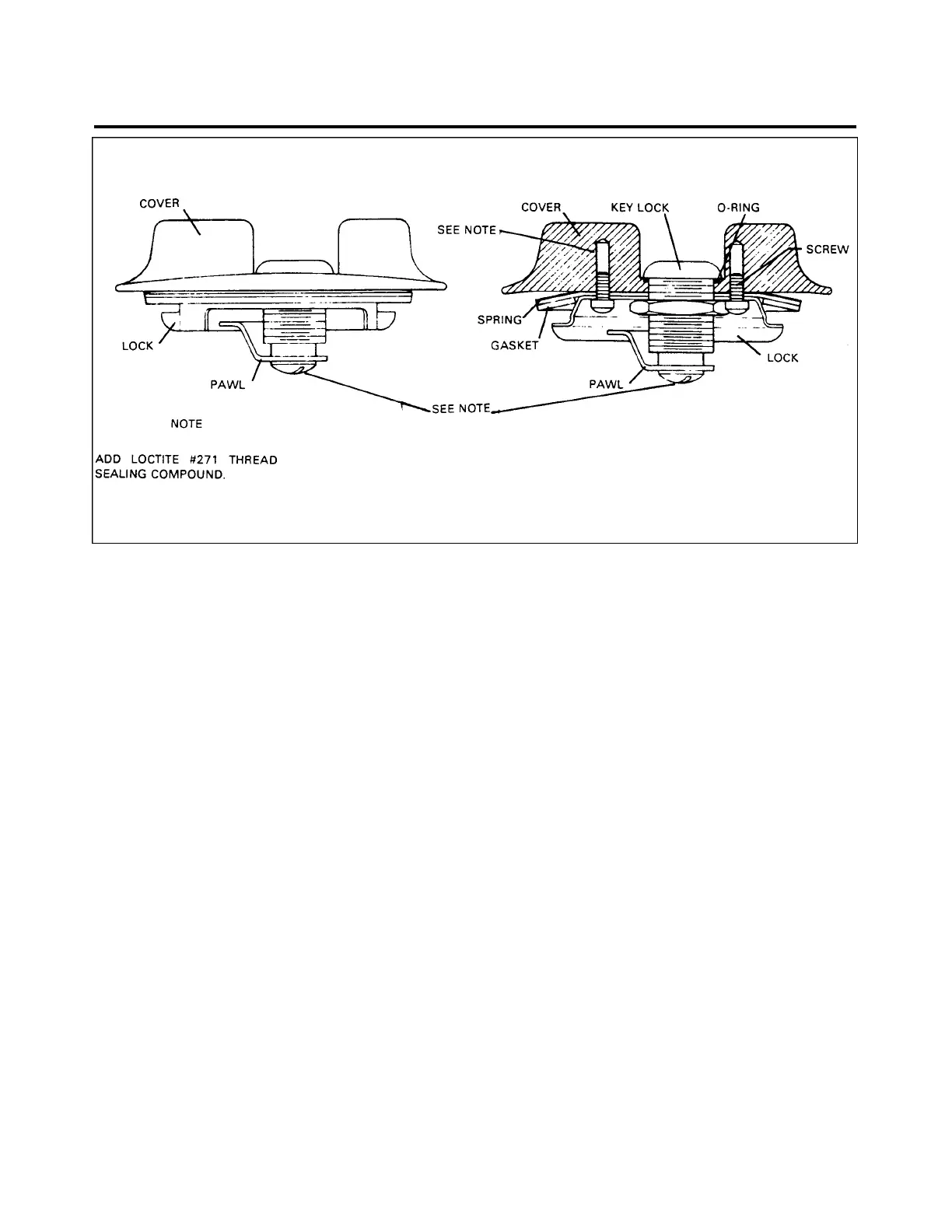

Figure 28-2. Locking Fuel Cap Assembly
3. Reinstall nut securing key lock to cover.
4. Attach pawl to back of lock assembly with screw previously removed. Use Loctite 271 on screw.
5. Reinstall two screws on back of fuel cap. Use Loctite 271 on threads.
DISTRIBUTION
FUEL SELECTOR VALVE
REMOVAL OF FUEL SELECTOR VALVE
1. Remove three screws holding selector cover and screw holding handle.
2. Remove side panel to gain access to selector valve.
3. Remove selector handle and cover.
4. Disconnect fuel lines from selector valve.
5. Remove fuel valve assembly by removing attaching screws.
28 - 00 - 00
Page - 28-06
Reissued: August 1, 1986
