Piper Dakota - Timing Marks on Magneto Rotor; Painted Tooth Centered in Timing Window; Timing Mark on Rotor Aligned with Pointer

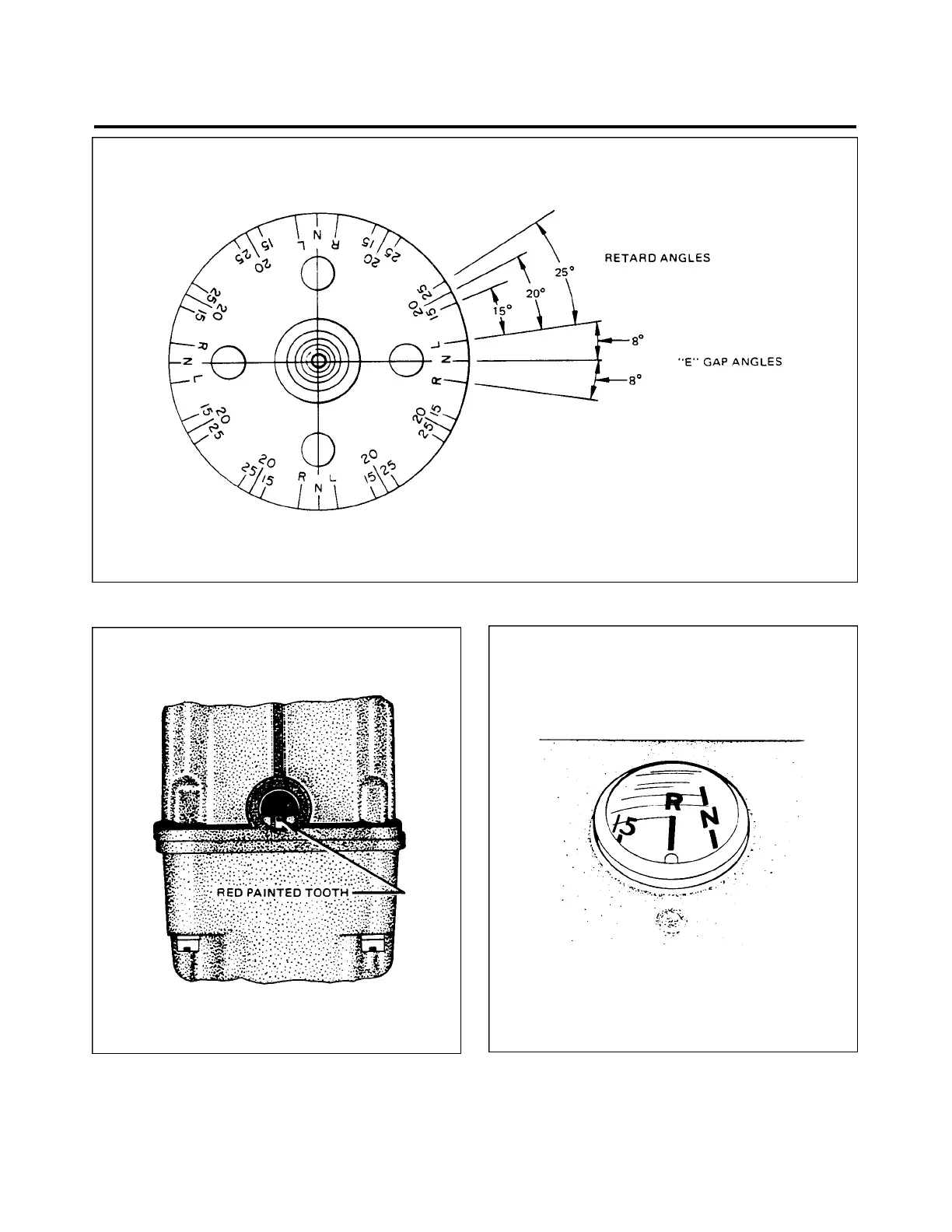

Figure 74-5. Timing Marks on Magneto Rotor
Figure 74-6. Painted Tooth Centered Figure 74-7. Timing Mark on Rotor
in Timing Window Aligned with Pointer
74 - 11 - 00
Page - 74-08
Reissued: August 1, 1986
2J4
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
