Piper Dakota - Brake Cylinder

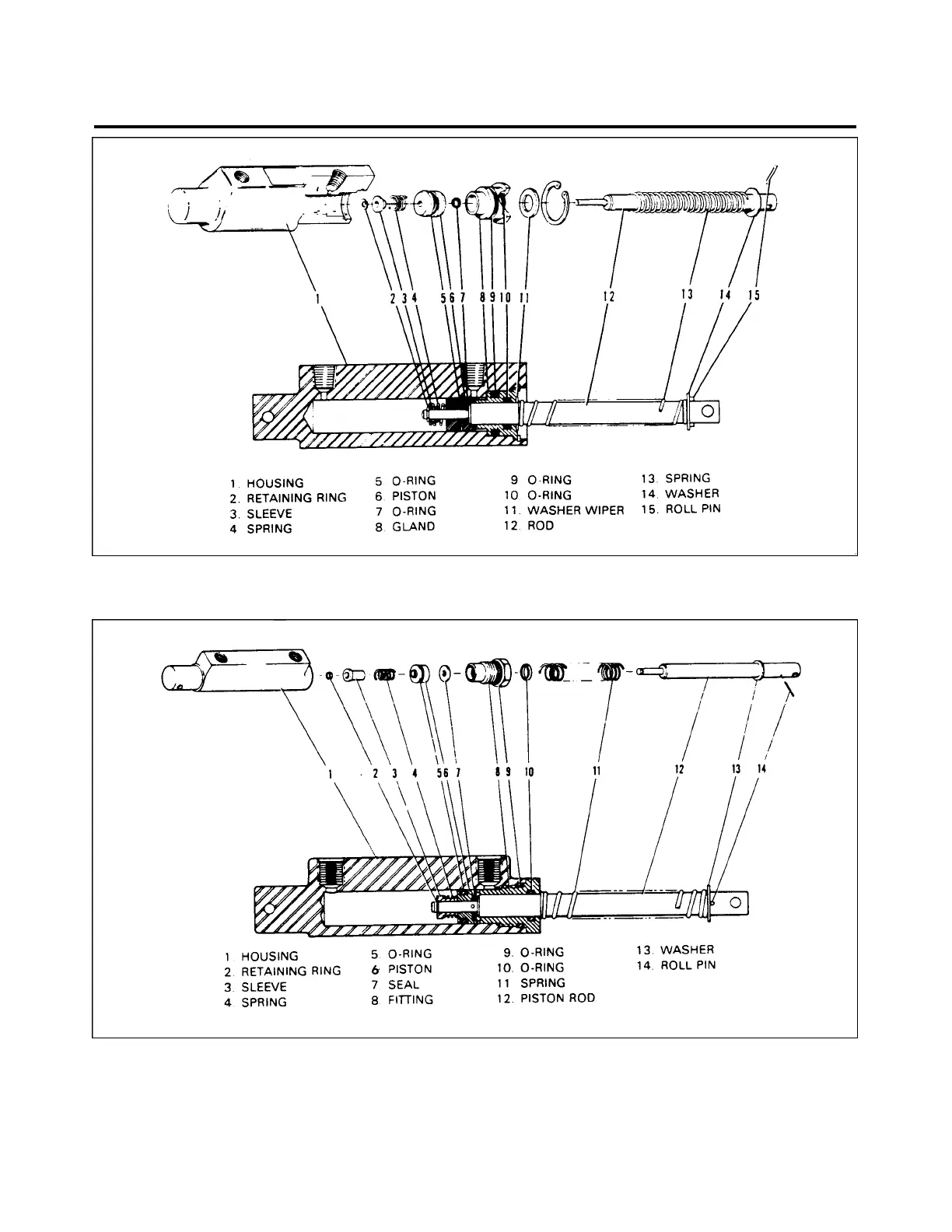

Figure 32-16. Brake Cylinder (10-30) (Toe Brake)
Figure 32-17. Brake Cylinder (17000) (Toe Brake)
32 - 45 - 00
Page - 32-28
Reissued: August 1, 1986
2C16
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
