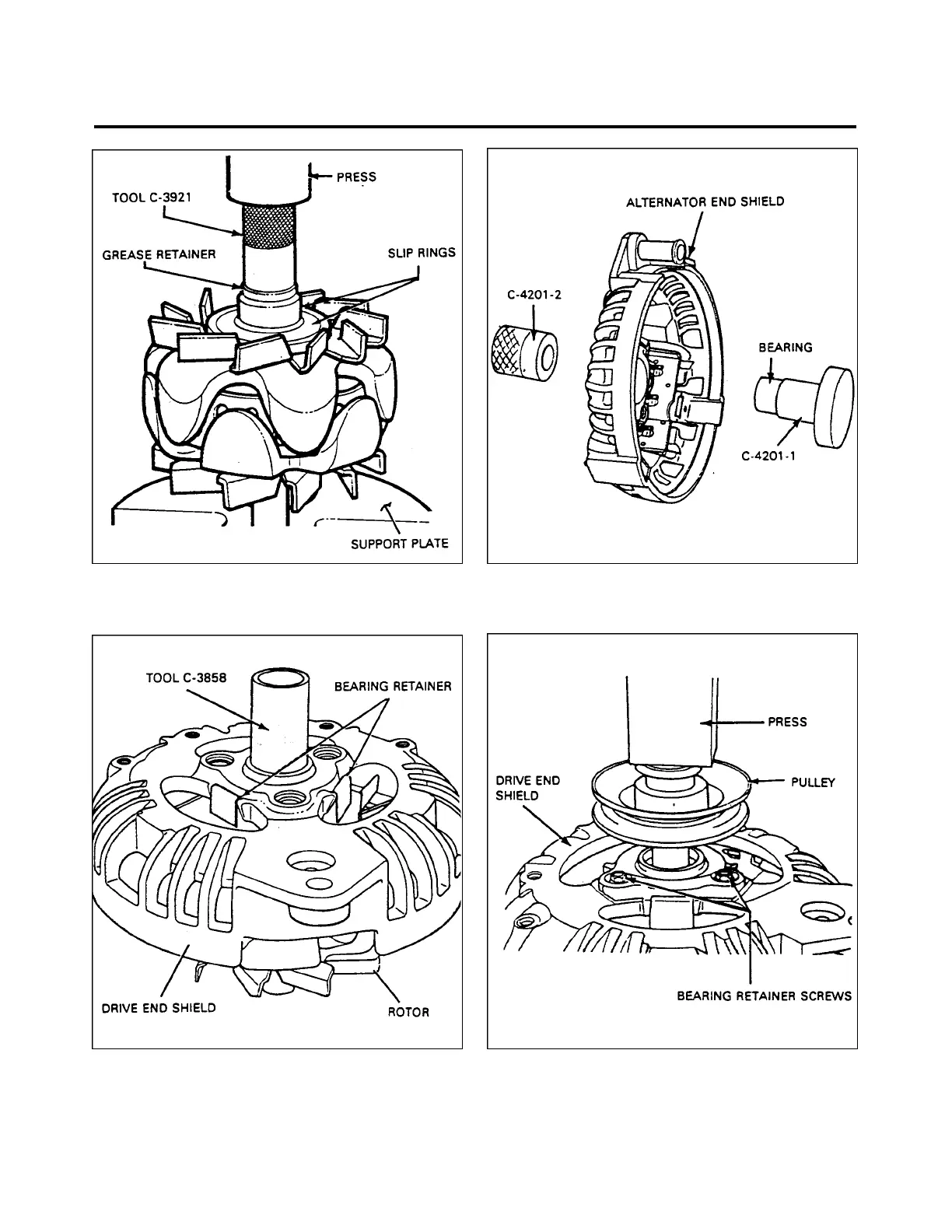

Figure 24-l8. Installation of Grease Retainer Figure 24-19. Installation of Rectifier End
Shield Bearing
Figure 24-20. Installation of Drive End Figure 24-2l. Installation of Pulley
Shield Bearing
24 - 32 - 00
Page - 24 - 22
Reissued: August 1, 1986
1I21
PIPER AIRCRAFT
PA-28-236
MAINTENANCE MANUAL
