Piper Warrior III - Page 645

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 9
Nov 30/06
3K7
39-20-00
1
1
4
5
7
6
2
3
STANDBY
ALTERNATOR
REGULATOR
FORWARD OF INSTRUMENT PANEL,
RIGHT SIDE, LOOKING OUTBOARD
BRACKET
(REF.)
W.L.
47.450
CURRENT LIMITER
J32
6
P326
CURRENT SENSOR ASSY.
(SP1A10
TO AMMETER SHUNT)
(TO VOLTAGE REGULATOR)
(TO STANDBY ALTERNATOR)
LOOKING AFT AT LEFT SIDE FIREWALL

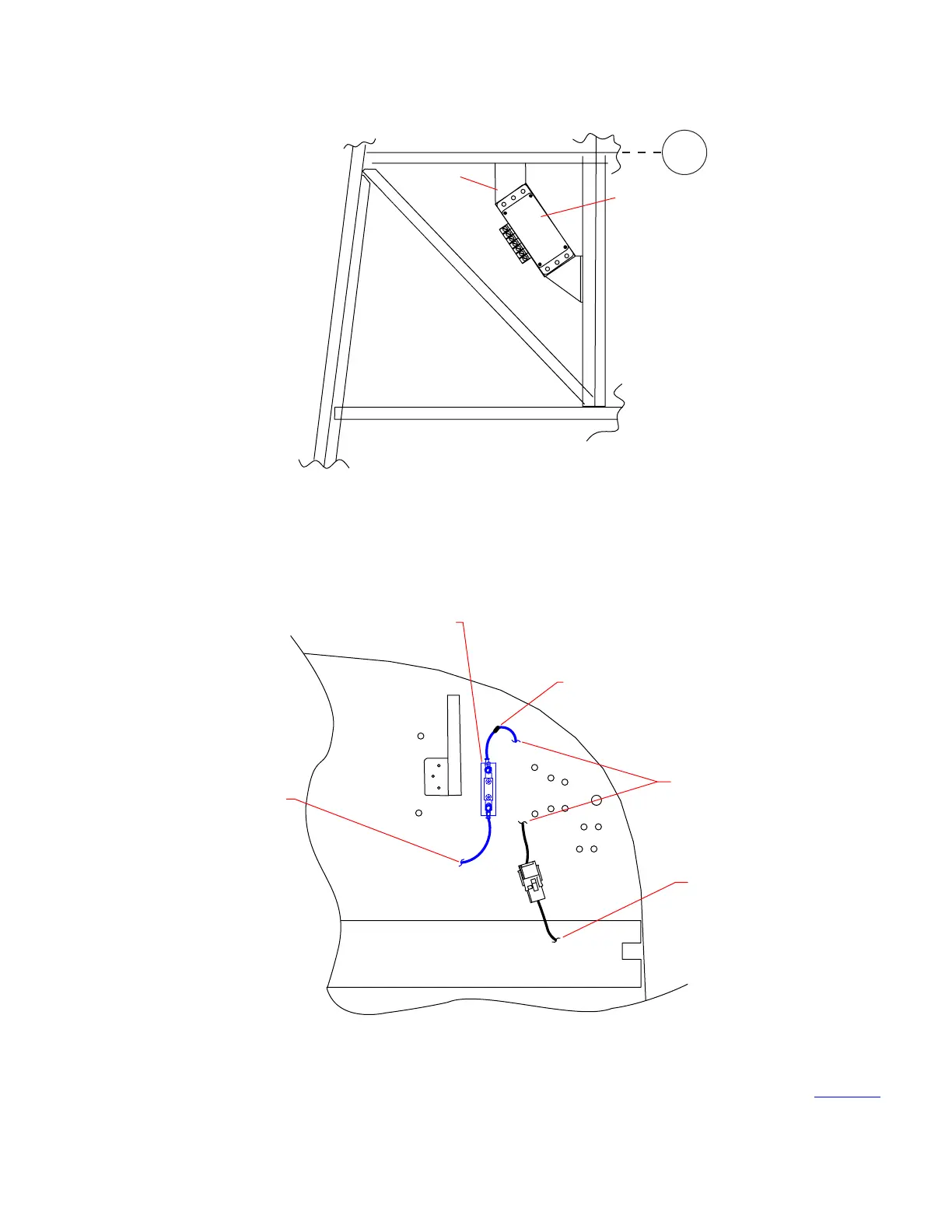

Electrical/Electronic Component Locator
Figure 1 (Sheet 8 of 12)
Effectivity
2842257 and up
