PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 10
Nov 30/06
3K8
39-20-00
CABIN FLOOR FUSELAGE HARNESS
ANNUNCIATOR DIMMER ASSEMBLY
(W12A20N)
(P302)
(J302)

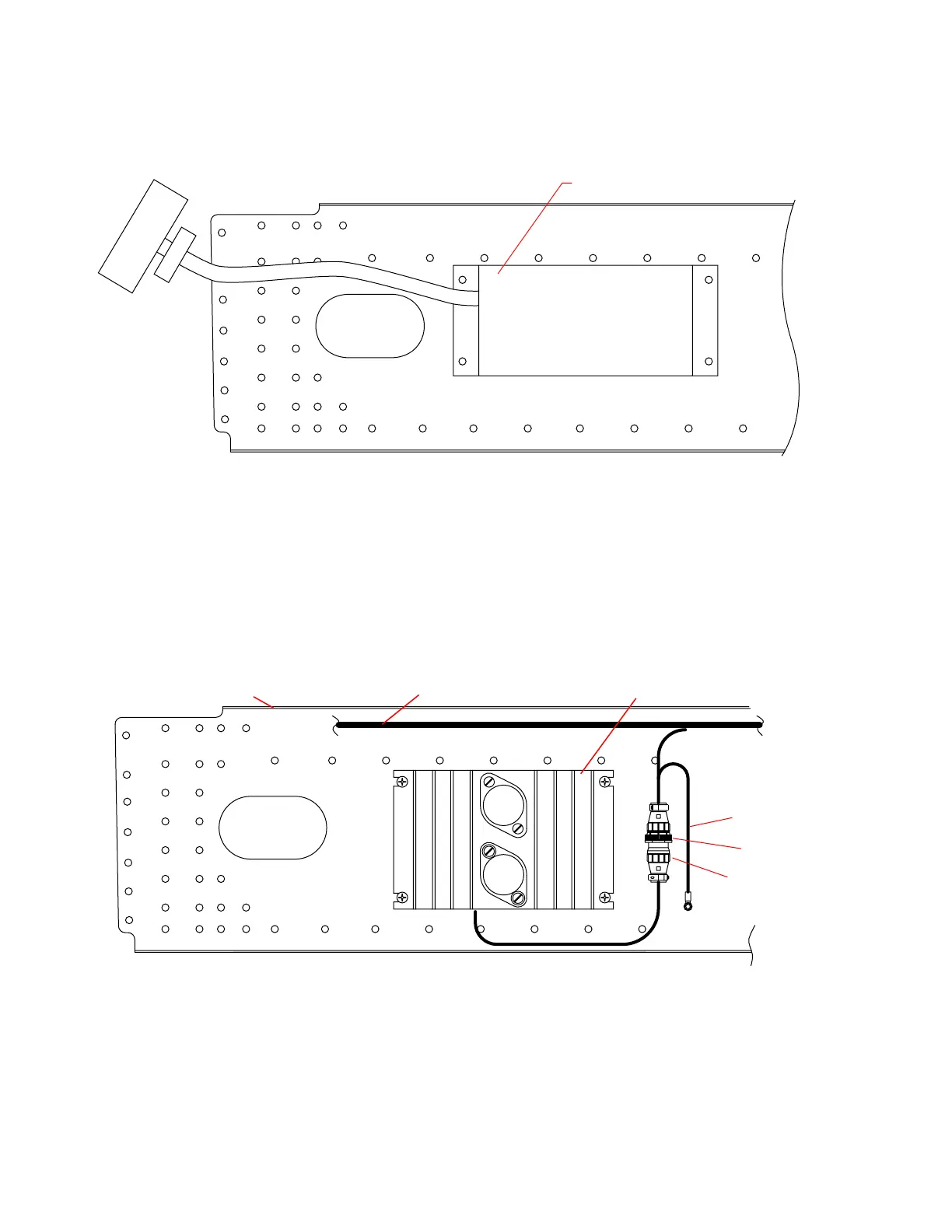

128.737 FRAME ASSEMBLY - RIGHT
LOOKING AFT
S/N’s 2842218 AND UP
128.737 FRAME ASSEMBLY - RIGHT
LOOKING AFT
ANNUNCIATOR BOX ASSEMBLY
S/N’s 2842001 THRU 2842217
Electrical/Electronic Component Locator
Figure 1 (Sheet 9 of 12)
