PAGE 3
Nov 30/064D13
51-80-00
PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
Millivolt Drop Test

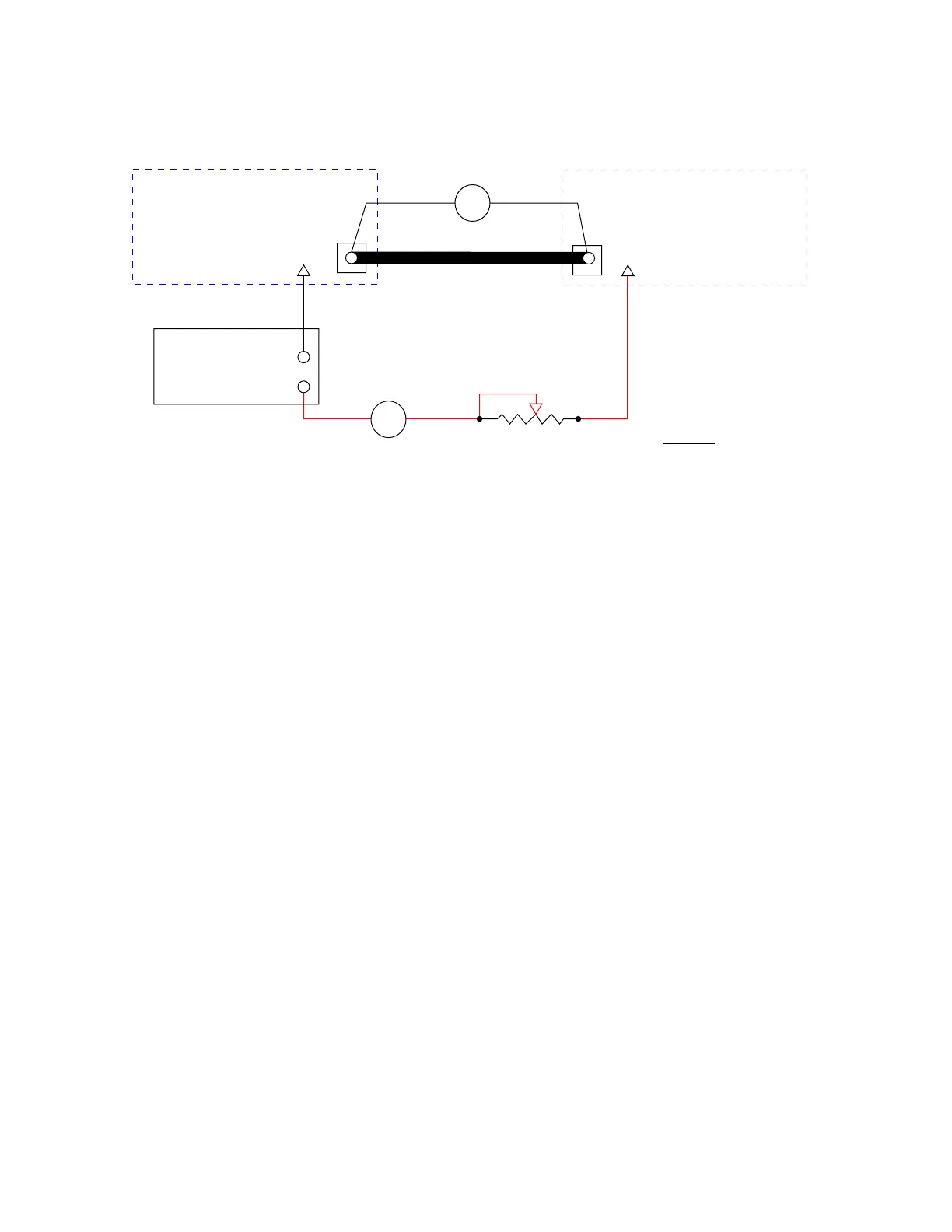

Figure 1
COMPONENT SURFACE
AIRCRAFT STRUCTURE SURFACE
BONDING STRAP
28 VDC SOURCE
-
+
AMMETER
VOLT METER
MV
A
R1
Adjust rheostat (R1) so that ammeter (A)
reads 10 Amps.
Resistance in milliohms is then the reading
on the volt meter (i.e. - millivolts (MV))
divided by the amps (10) set on the
ammeter. For example, where MV equals
30:
30 MV
10 AMPS
= .003 OHMS RESISTANCE
