All-New Event Presentation Switching Solutions
User Manual
8 U5/U5 Pro Event Controllers
www.pixelhue.com
173
U5 Pro Front Panel

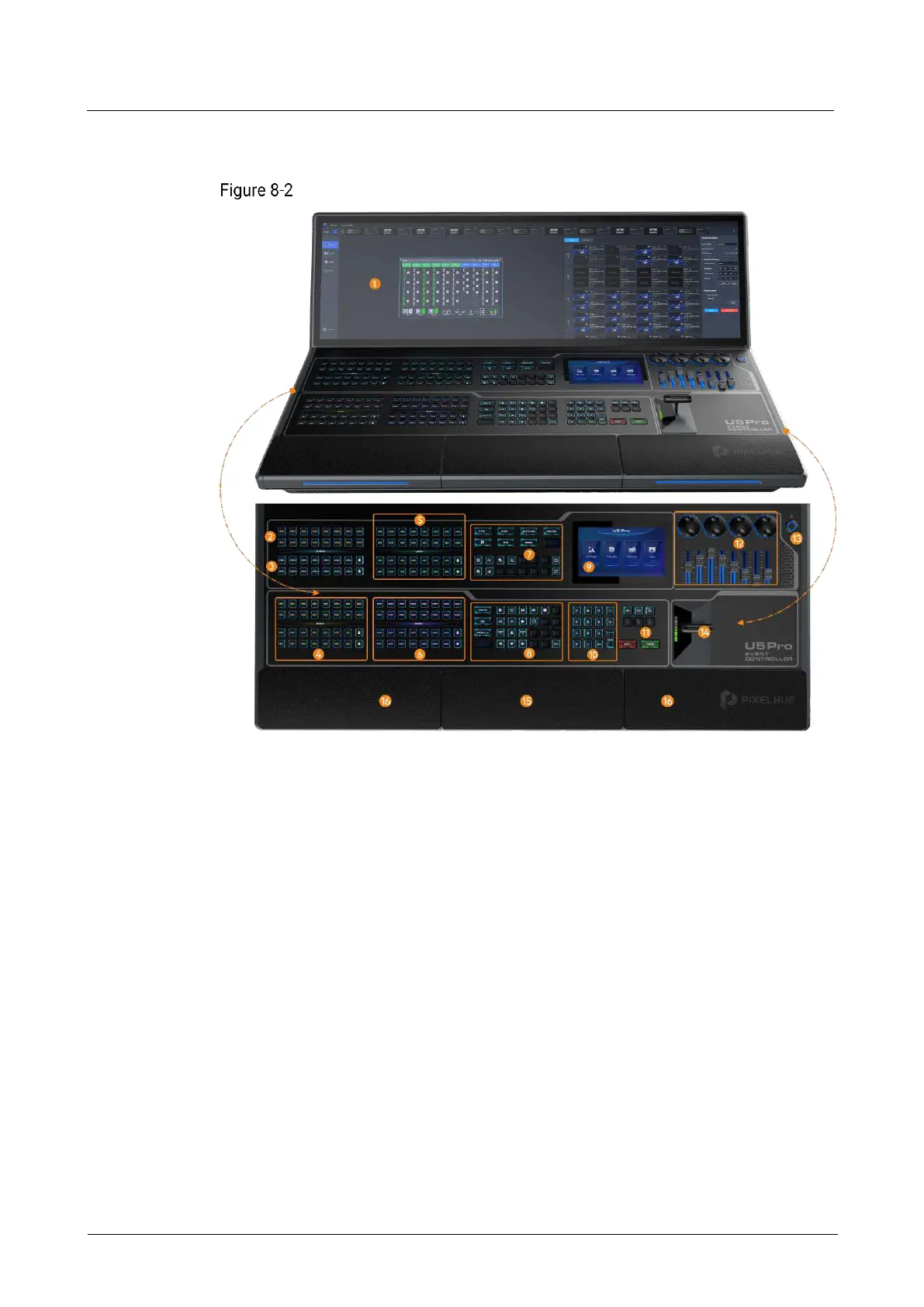

U5 Pro front panel
1. Main touchscreen
9. Smart touchscreen
2. Device buttons
10. Number buttons
3. Screen buttons
11. Switching control area
4. Input buttons
12. MIDI module area
5. Layer buttons
13. Power button
6. Preset buttons
14. T-Bar
7. Function control area
15. Keyboard
8. Camera and timecode control area
16 Drawers
