PIXELHUE P20 - Page 24

All-New Event Presentation Switching Solutions
User Manual
4 Overview
www.pixelhue.com
18

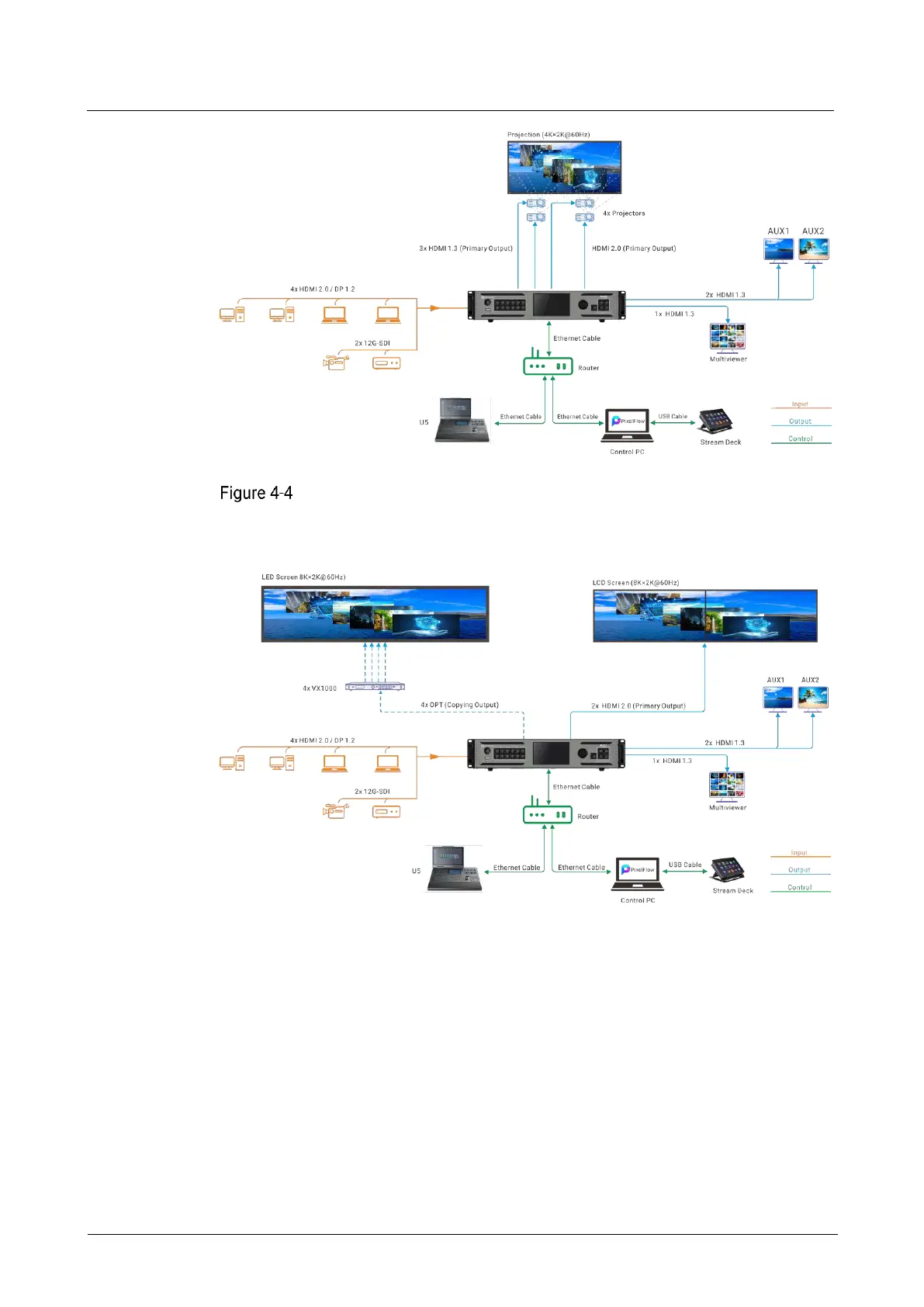

PGM only mode (P10+U5+PixelFlow)
When the output capacity is 4K, two HDMI 2.0 connectors are used for 4K output.
When the output capacity is SL, eight connectors are used for 2K output. 4K output is
used as an example for illustration of projection
