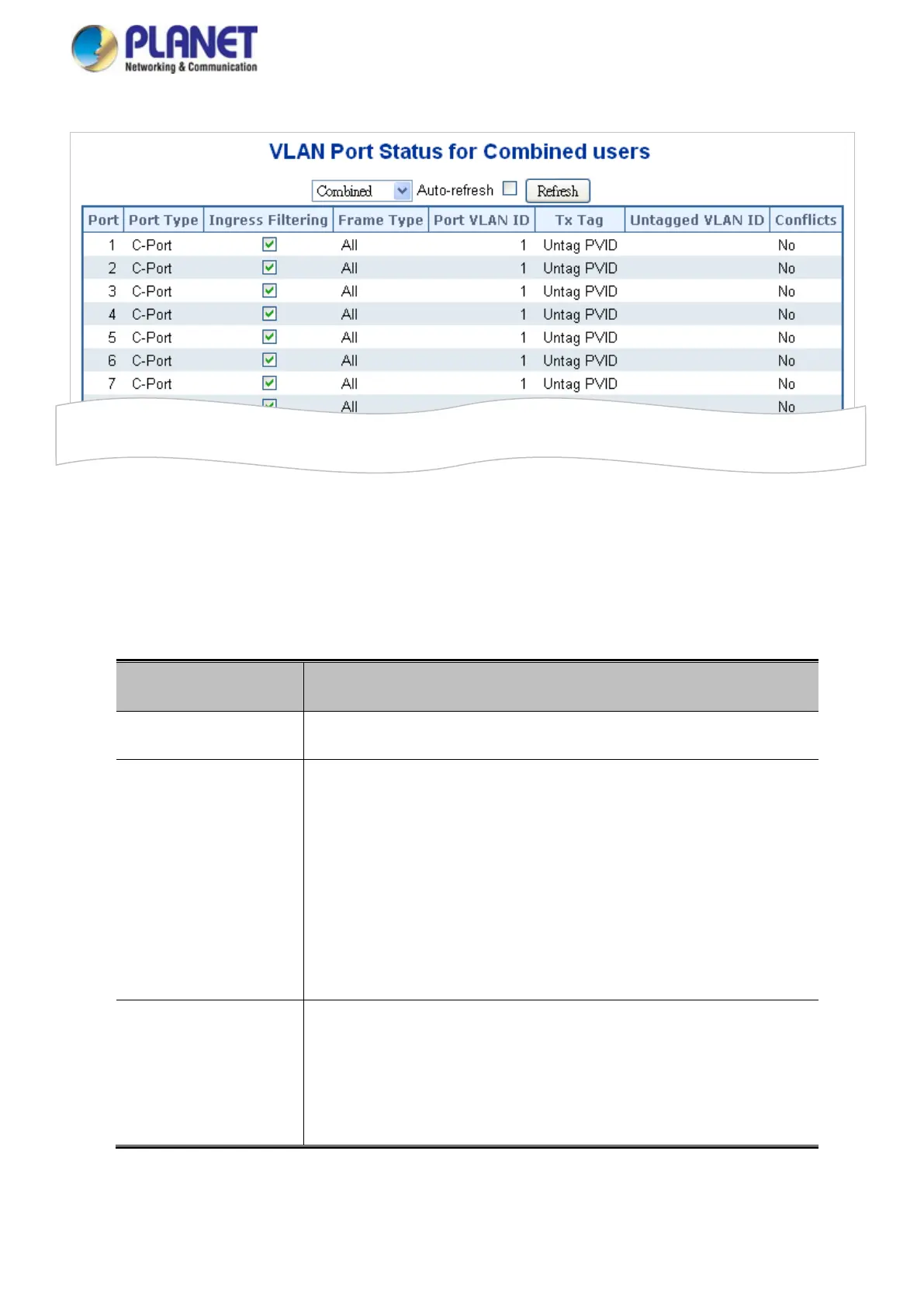

Figure 4-6-5: VLAN Port Status for Combined users Page Screenshot
The page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
• Port Type
Show the VLAN Awareness for the port.
If VLAN awareness is enabled, the tag is removed from tagged frames
received on the port. VLAN tagged frames are classified to the VLAN ID
in the tag.
If VLAN awareness is disabled, all frames are classified to the Port VLAN
ID and tags are not removed.
• Ingress Filtering
Show the ingress filtering for a port. This parameter affects VLAN
ingress processing. If ingress filtering is enabled and the ingress port is
not a member of the classified VLAN of the frame, the frame is
discarded.
