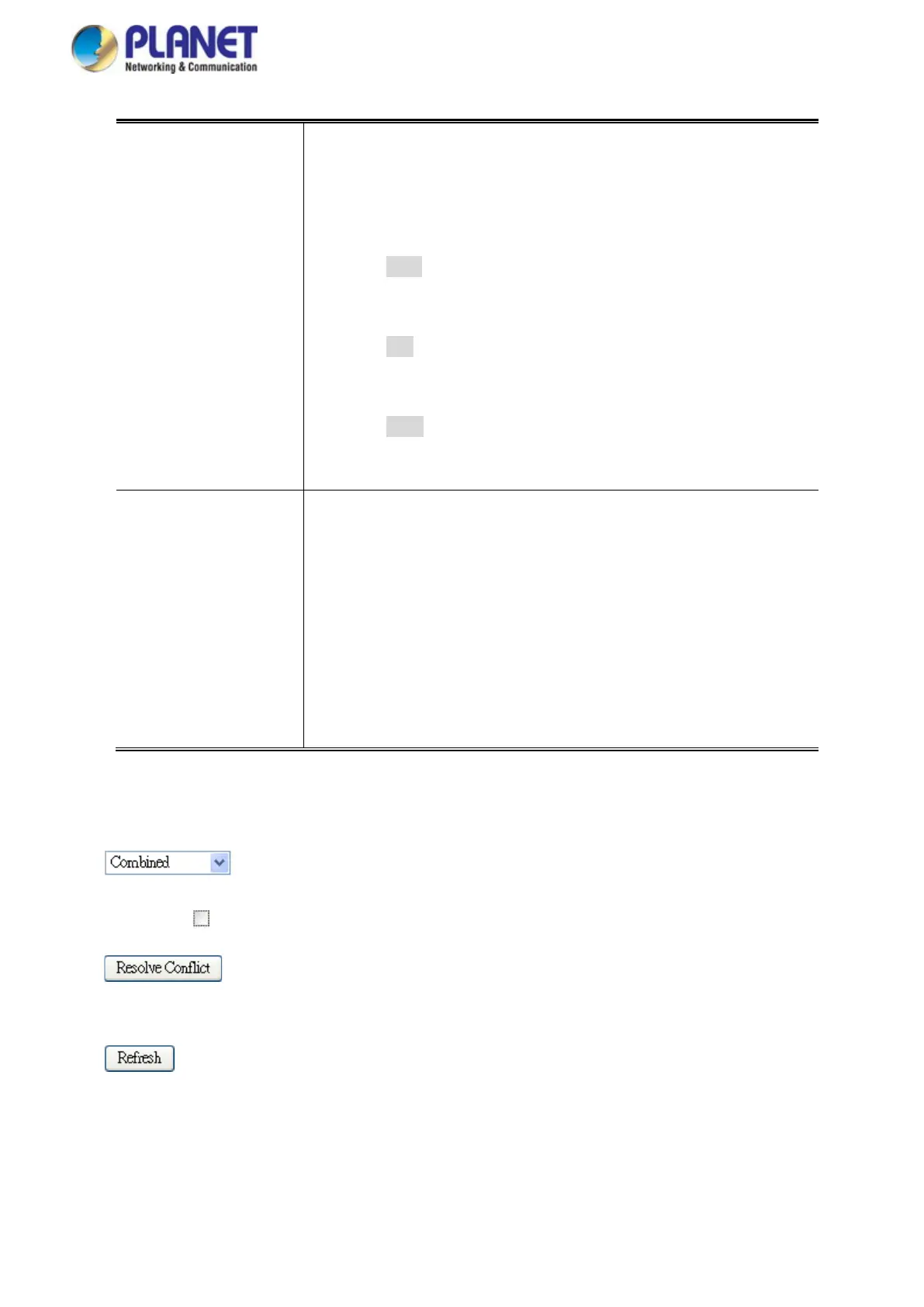

User’s Manual of GS-5220 LCD Series
320
• Action
Indicates the classification action taken on ingress frame if parameters
configured are matched with the frame's content.
There are three action fields: Class, DPL and DSCP.
■ Class: Classified QoS class; if a frame matches the QCE it will
be put in the queue.
■ DPL: Drop Precedence Level; if a frame matches the QCE
then DP level will set to value displayed under DPL column.
■ DSCP: If a frame matches the QCE then DSCP will be
classified with the value displayed under DSCP column.
• Conflict
Displays Conflict status of QCL entries. As H/W resources are shared by
multiple applications. It may happen that resources required to add a
QCE may not be available, in that case it shows conflict status as 'Yes',
otherwise it is always 'No'.
Please note that conflict can be resolved by releasing the H/W
resources required to add QCL entry on pressing 'Resolve Conflict'
button.
Buttons
: Select the QCL status from this drop down list.
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to release the resources required to add QCL entry, in case the conflict status for any
QCL entry is 'yes'.
: Click to refresh the page.
