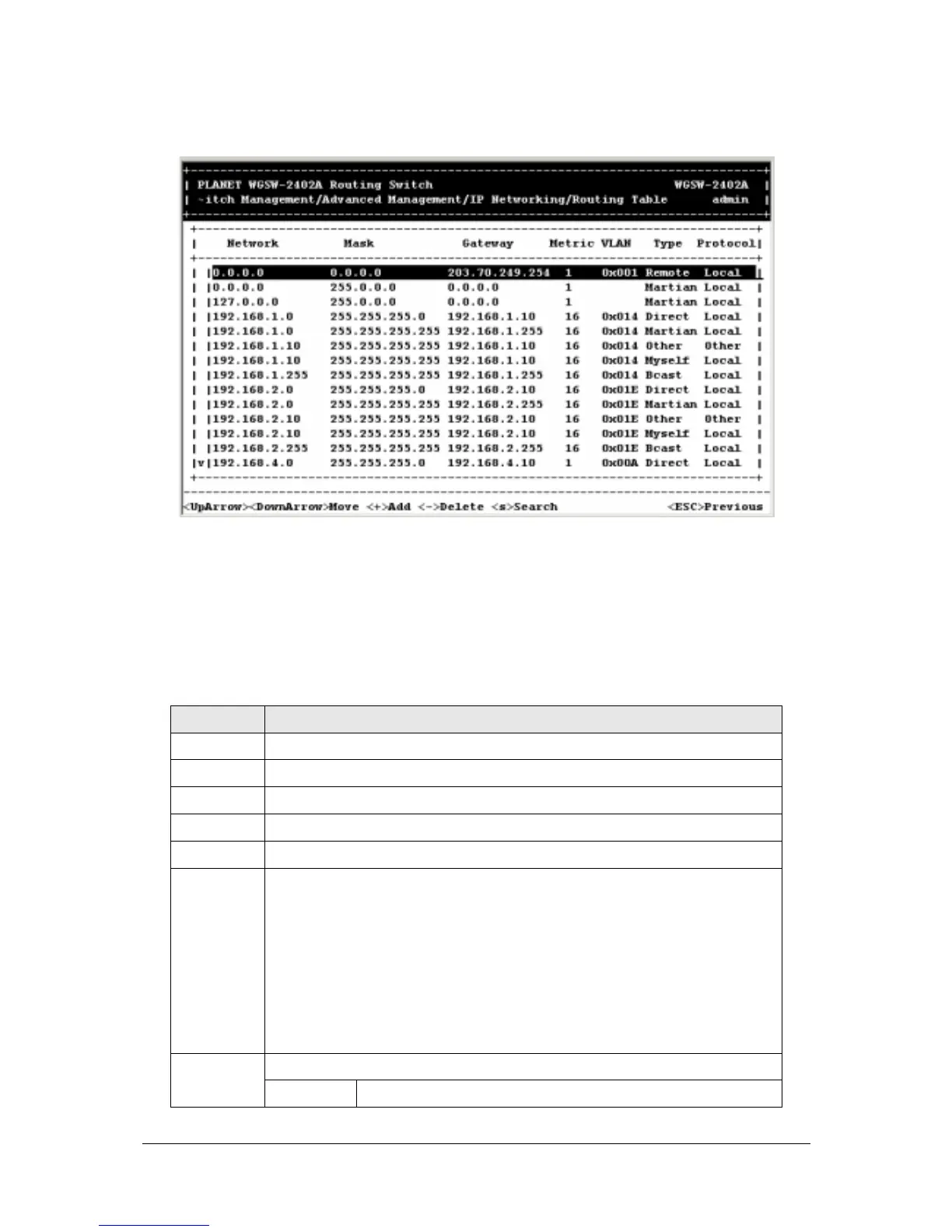

The Routing Table allows you to view, add, delete, or search a particular routing path. Table 5-1
identifies the columns in this screen.
T
ABLE
5-1. R
OUTING
T
ABLE
C
OLUMNS
Column Description
Network
The IP Subnetwork address to which the Switch can route packets.
Mask
The related IP Subnetwork Mask to which the Switch can route packets.
Gateway
The IP address of the router at the next hop.
Metric
The number of hops needed between the Switch and the destination network.
VLAN
The VLAN within which the gateway or destination resides.
Type
The IP route type for the IP subnetwork. There are six IP route types:
Direct A directly connected subnetwork.
Remote A remote IP subnetwork or host address.
Myself A switch IP address on a specific IP subnetwork.
Bcast A subnetwork broadcast address.
Mcast An IP multicast address.
Martian An illegal IP address to be filtered or a special IP address.
Indicates one of the following:
Protocol
Local
A manually configured routing entry.
To Next Page
