Planet WGSW-404 User Manual

- 7 -

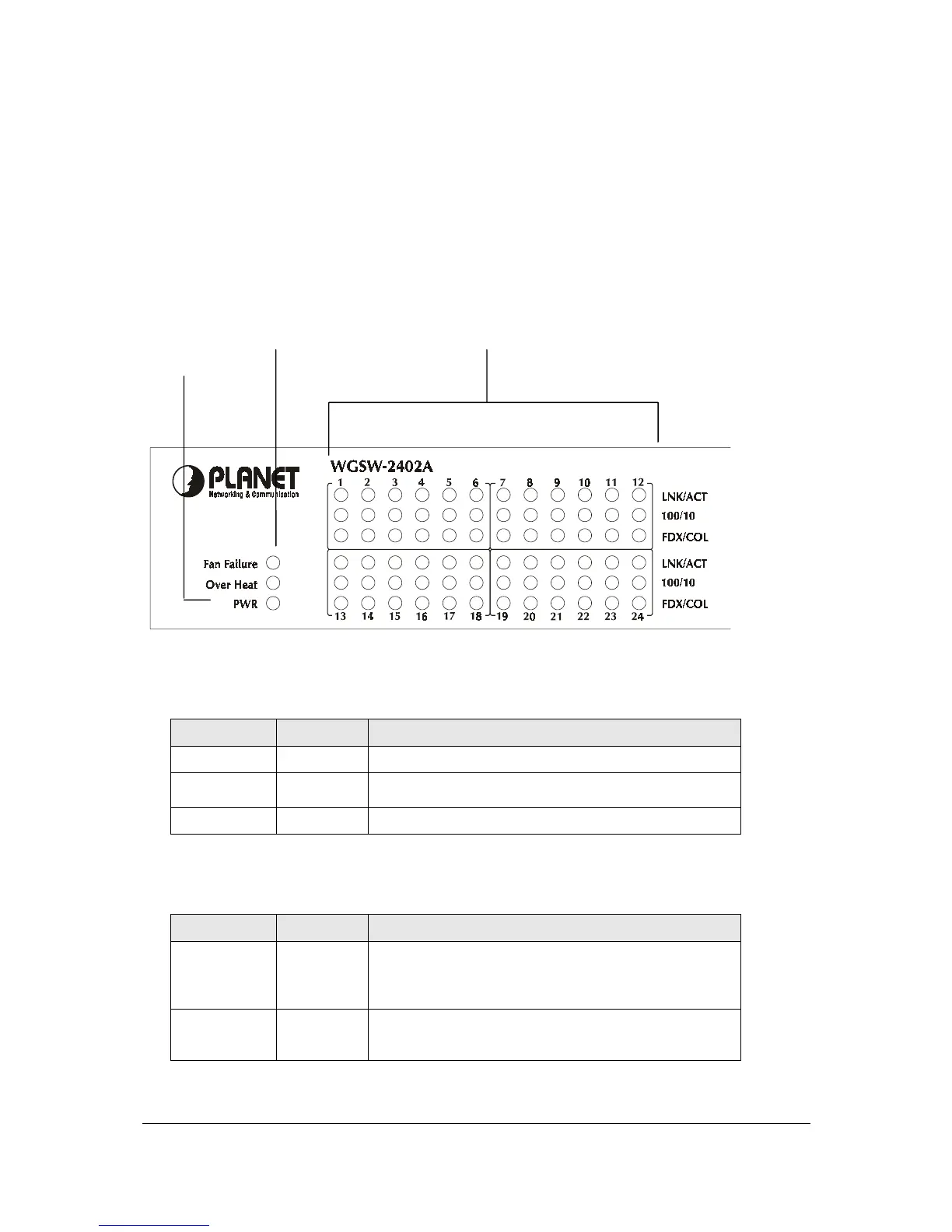

2.1.2 LEDs of WGSW-2402A
The LEDs indicate the status of 10/100 Mbps Ethernet ports, Over Heat, Fan Failure and Power. Figure
2-2 shows the LED panel of the Switch. Table 2-2 shows the functions of power and status LEDs. Table
2-3 shows the functions of the port status LEDs.
F
IGURE
2-2 LED
S
P
ANEL
Status LED 10/100 Port Status LEDs
Power LED
The LEDs are explained in the following tables.
T
ABLE
2-2 P
OWER AND
S
TATUS
LED
S
LED Color Function
PWR
Green
Lights to indicate that the Switch has power.
Over Heat
Red
Lights to indicate that the Switch exceeds its operational
temperature.
Fan Failure
Red
Lights to indicate that the fans are not active.
T
ABLE
2-3 P
ORT
S
TATUS
LED
S
LED Color Function
Link/Act
Green
Lights to indicate that the Switch is successfully
connecting to the network.
Blinks to indicate the Switch is actively receiving or
sending the data over the port.
100/10
Green
Lights to indicate that the port is operating at 100 Mbps.
Off to indicate that the port is operating at 10 Mbps while
the port’s Link is on.
