- 25 -

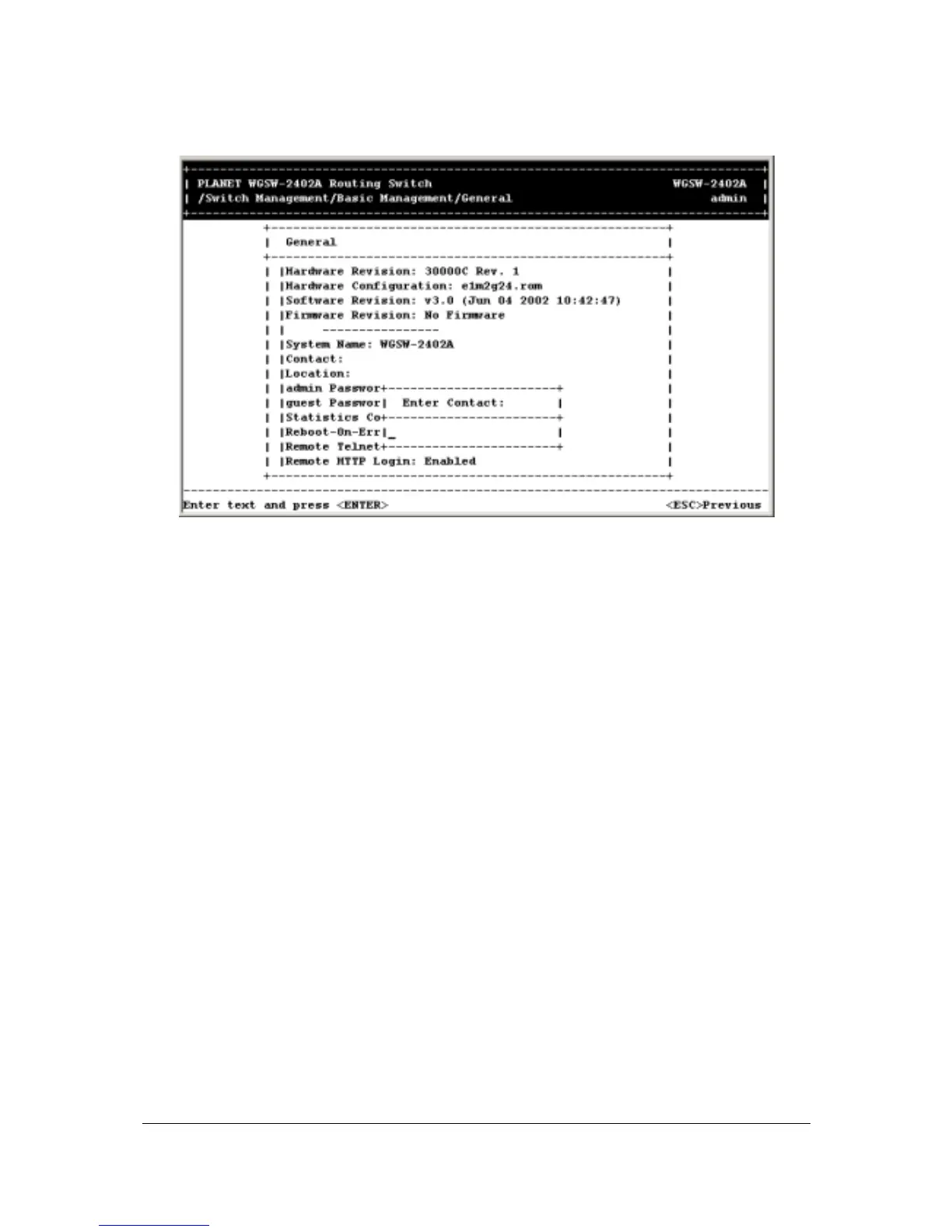

F
IGURE
4-5
E
NTER
C
ONT
ACT AND
L
OCA
TION
2.
Enter a contact or location nam
e. If you make a mistake, use the
Backsp
ace
key to delete the
error.
3. Press
Enter
to return to the
General
screen.
4.3.1.3 Changing the Administration Password
To change the administration pa
ssword:
1. Use
the
Down Arro
w
key to highlight
admin Password
and press the
Enter
key. The
Enter Old
Password
screen appears.
32
