Planet WGSW-404 User Manual

- 140 -
5.11.3 Stack Port Mapping

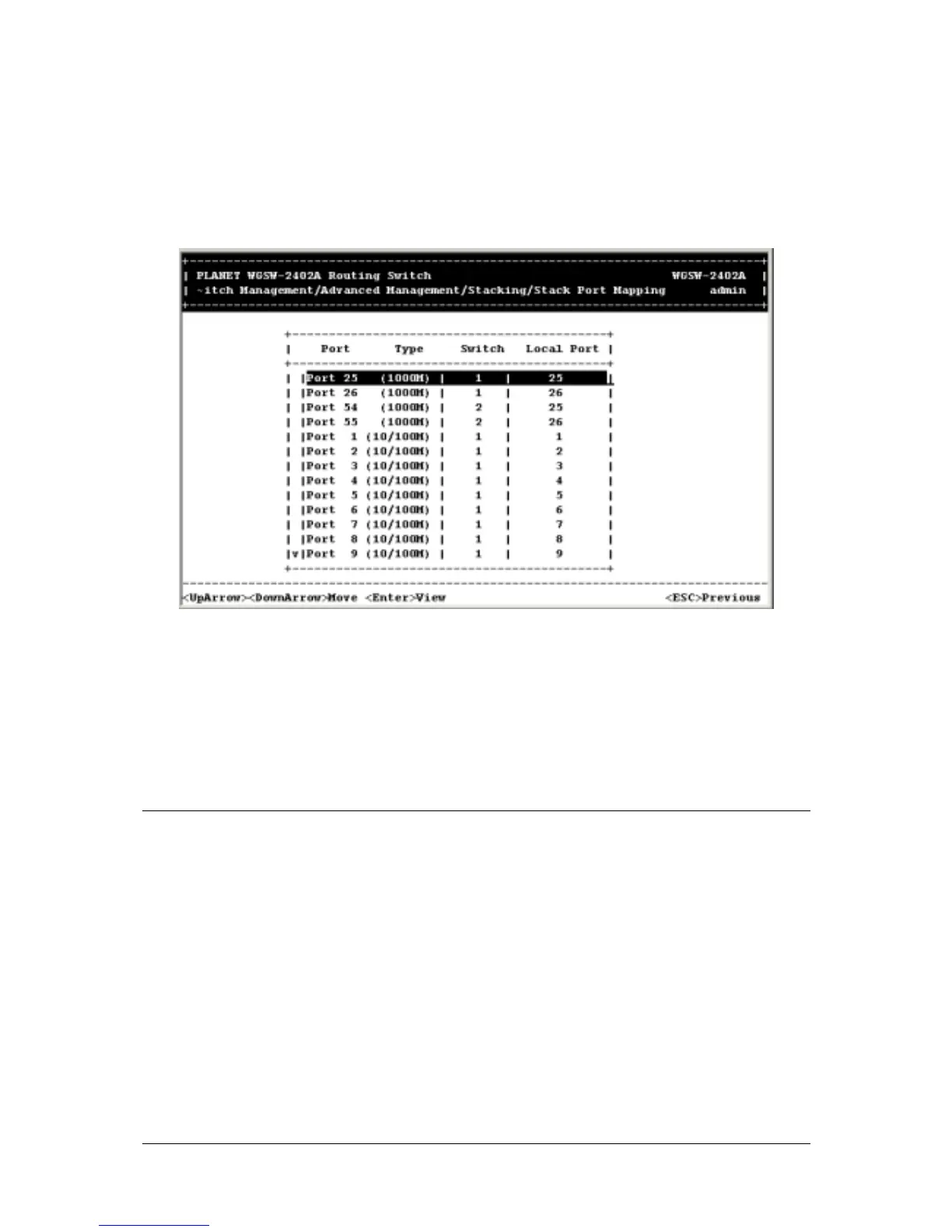

From the Stacking screen, highlight Stack Port Mapping and press Enter. The following screen will
appear. The table shows the status of all stacked switch.
F
IGURE
5-117
After stacking is successful, the number of all ports of Switch 2 will be added beyond 26. For example,
port 25 and 26 in Switch 2 will be designated as port 54 and 55 in this table. And you will found port30
will be port 1 of the Switch 2 (let’s assume two WGSW-2402A stack together) if you scroll down the
screen. This mean you can tell the relations between physical port and stack port from this table.
5.12 Other Protocols
If you highlight Other Protocols from the Advanced Management screen and press the Enter key, the
Other Protocol Settings screen in Figure 5-118 appears, with the GVRP value highlighted.
