Planet WGSW-404 User Manual

- 205 -
6.4.2 Configuring LAN Ports

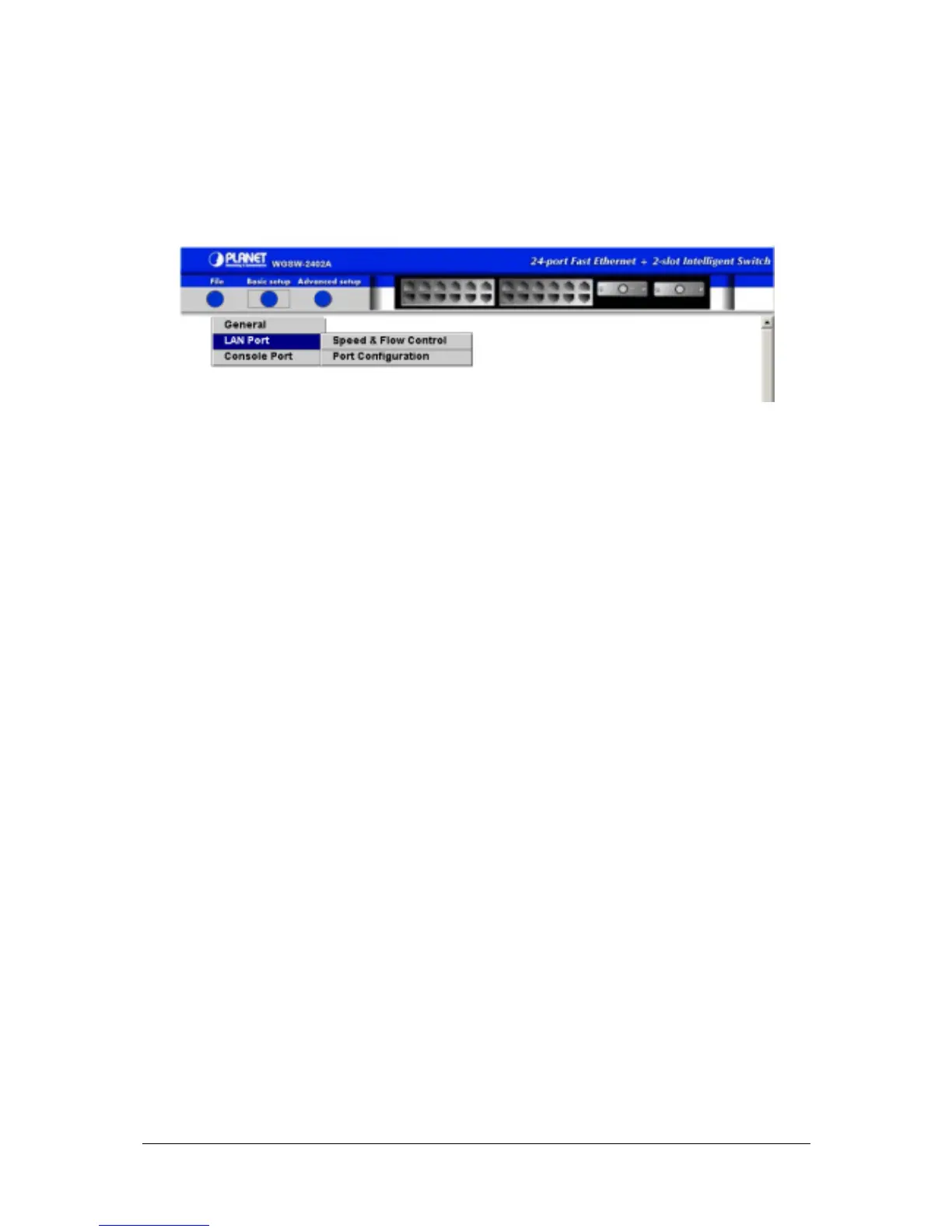

To access the LAN configuration parameters, point to Basic Setup and point to LAN Ports. The
options in Figure 6-8 appear.
F
IGURE
6-8 LAN P
ORT
O
PTIONS
The LAN port options are:
 Speed & Flow Control — lets you view port speeds; speed type; and link, speed, duplex, and
flow control status from a single window. See section 5.4.3 “Viewing the Speed & Flow Control”.
 Port Configuration — lets you view and change parameters for selected Switch ports. See
section 5.4.4 “Changing Port Configuration”.
6.4.2.1 Viewing the Speed & Flow Control
To view the line speed and flow control for all ports:
1. Point to Basic Setup, point to LAN Ports, and click Speed & Flow Control. A read-only table
similar to the following shows the current settings for all ports. If there are more ports below the
bottom one shown, use the scroll bars at the right side of the window to scroll down.
