Planet WGSW-404 User Manual

- 111 -

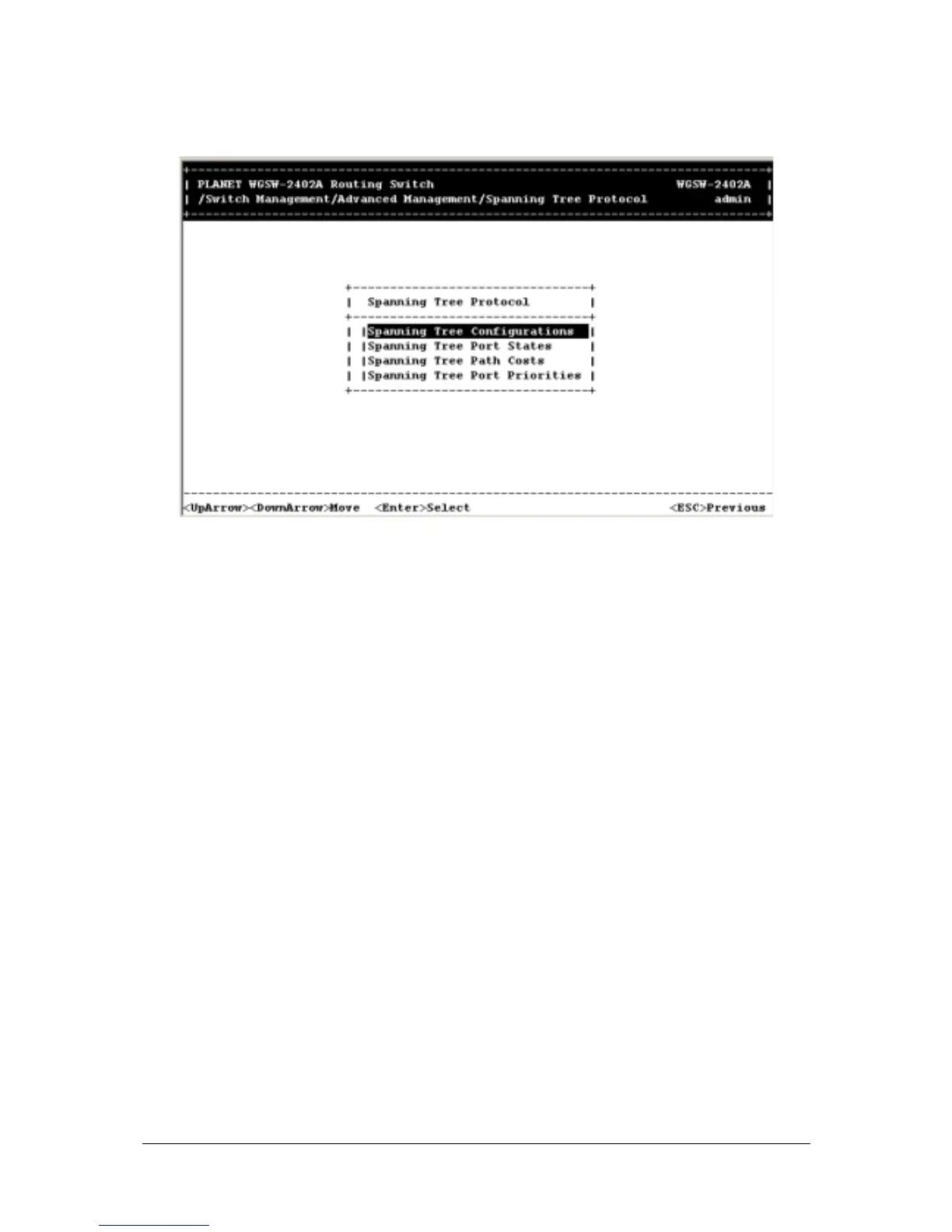

F
IGURE
5-81 S
PANNING
T
REE
P
ROTOCOL
S
CREEN
5.9.1 Spanning Tree Protocol Configurations
If you highlight Spanning Tree Configurations in the Spanning Tree Protocol screen (see Figure 5-81)
and press the Enter key, a Spanning Tree Protocol Configuration screen similar to the following
appears. The top half of this screen displays read-only values. The bottom half, starting with Spanning
Tree Protocol, is user configurable. Use the Up and Down Arrow keys to highlight a field, then press
Enter to change the value. When you finish, press the Esc key until you return to the desired screen.
