7.7.1 VLAN Configuration
Using VLAN Configuration, you can create, modify, and delete VLANs.
7.7.1.1 Adding a VLAN
To add a VLAN:

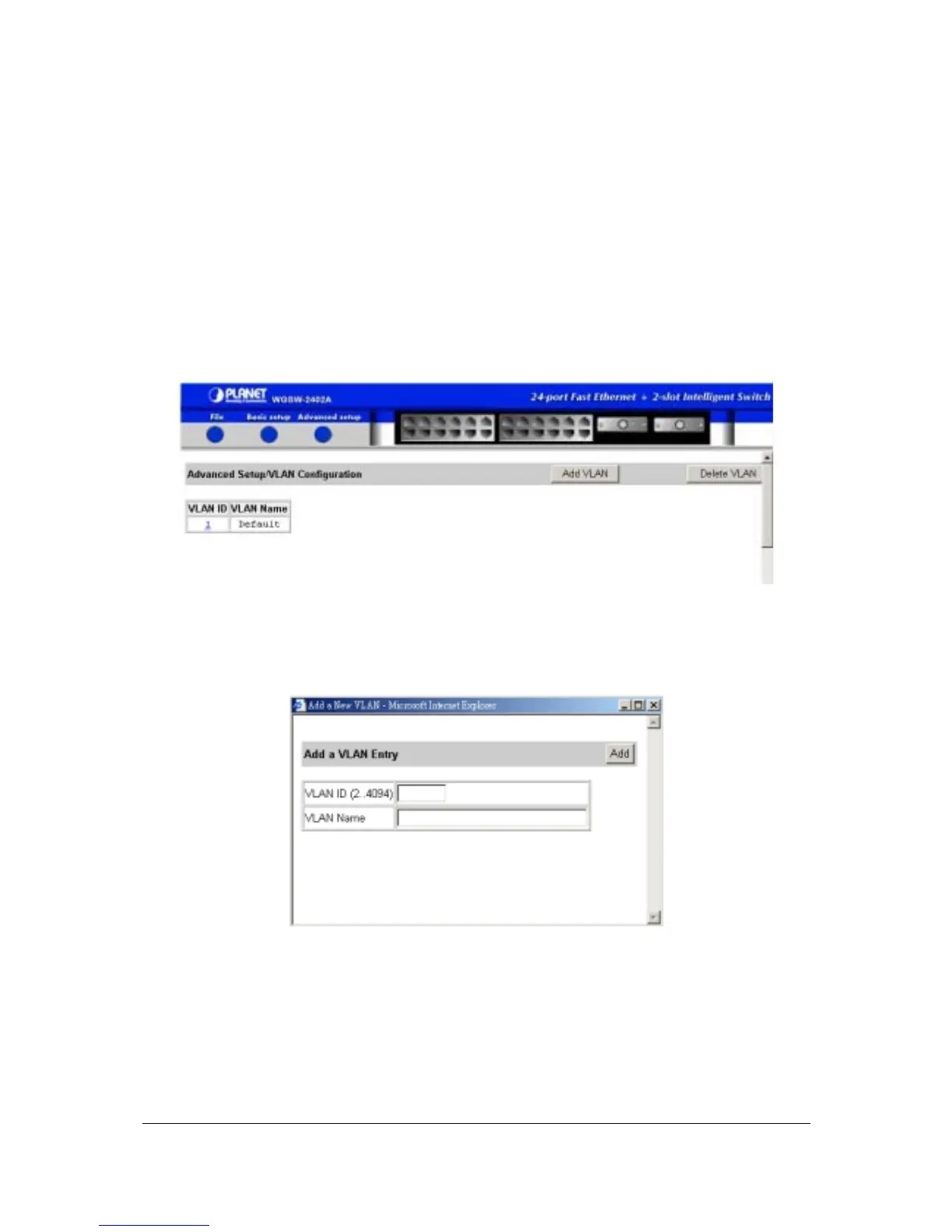

1. Point to Advanced Setup, point to VLAN Perspective, and click VLAN Configuration. The VLAN
ID and name for any VLANs already defined appear, as shown in the following figure.
F
IGURE
7-33
2. Click the Add VLAN button. The VLAN Information window appears.
F
IGURE
7-34
3. For VLAN ID, type a unique VLAN identifier, from 2 to 4094.
4. For VLAN Name, type a name that identifies this VLAN.
5. Then, click “Add” to add the desired VLAN ID for the new port:
6. After the New VLAN is added, click the new ID. The screen will be shown as below. Each button in
this window allows you to add or delete a different port and define a different port type:
 The two buttons at the left let you map ports as untagged ports or delete ports.
