- 63 -
5.2.2.5 V
iewing VLAN Settings
Using the VLAN Configuration scree
n, you can view VLAN settings.
1.

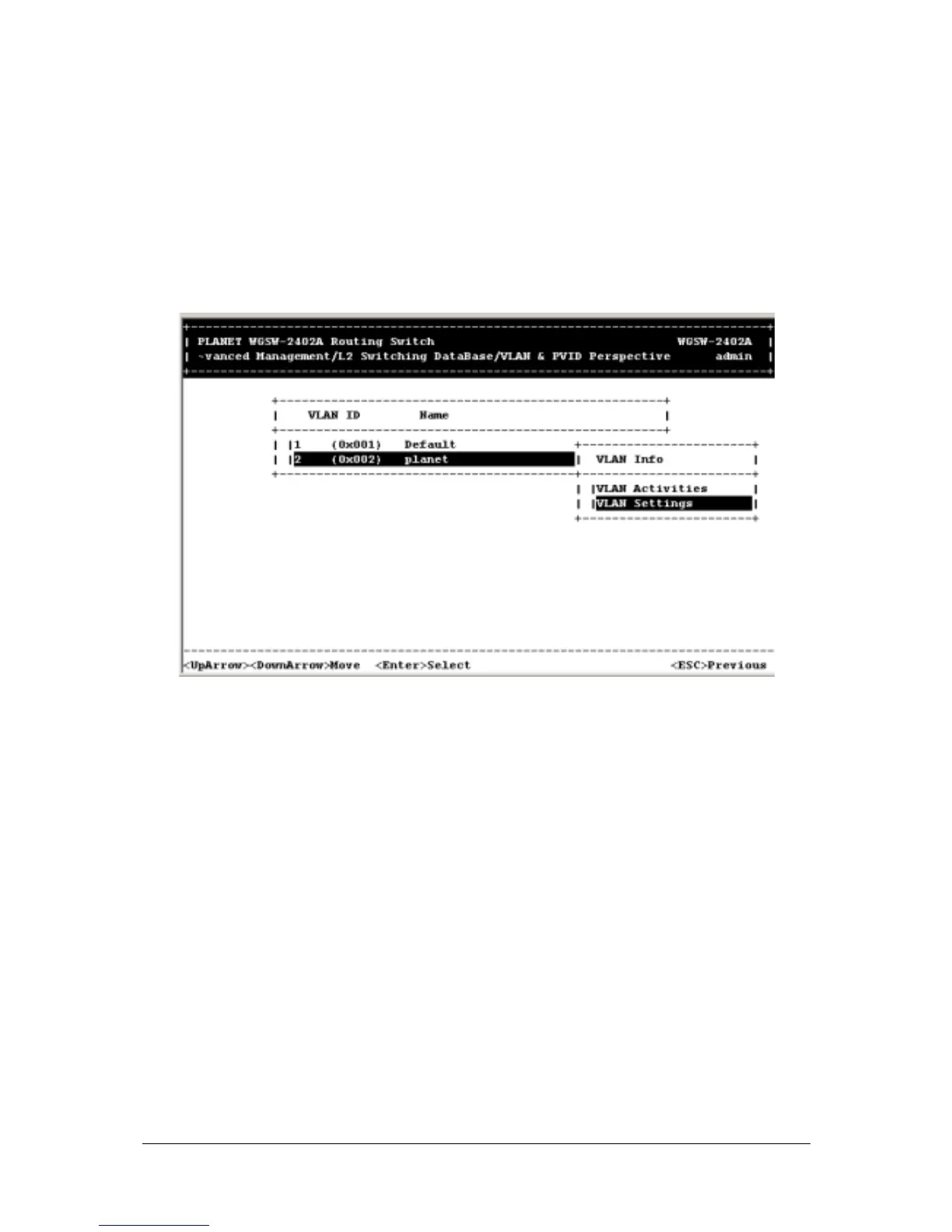

From the VLAN Perspective screen, highlight an existing VLAN and press the Enter key. A screen
similar to the following appears, with the highlight on
VLAN Activ
ities
.
F
IGURE
5-18
2.
Press the Up or Down Arrow key to highlight
VLAN Settings
.
3.
Press Enter. A screen similar to the following appea
rs.
