- 190 -

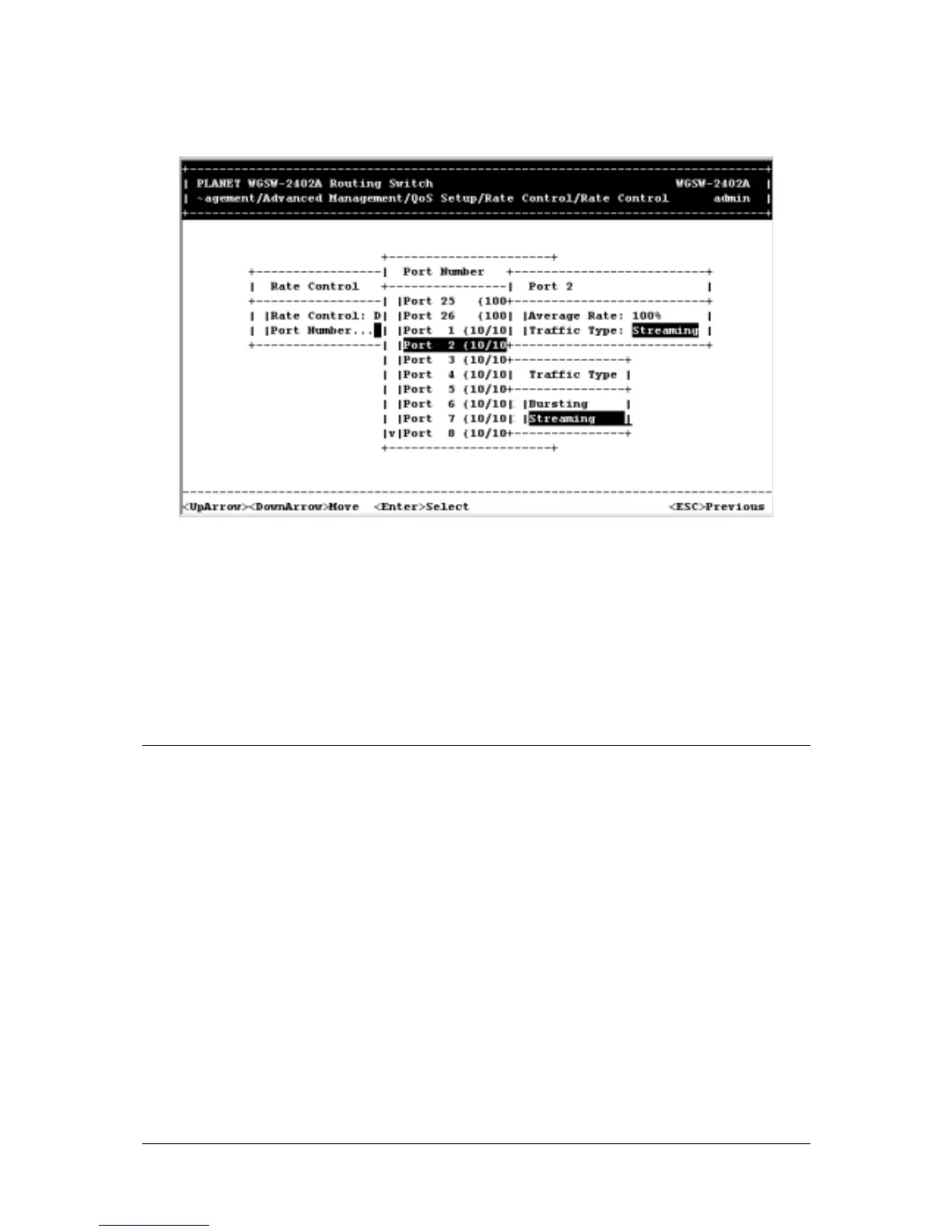

F
IGURE
5-178
9. Highlight
either
Bursting
or
Streaming
, then press Enter. Your selection appears next to
Traffic
Typ
e
.
10.
Press the Esc key until you return to the desired screen.
5.16 Sending and Receiving Files
If you select
File Transfer
from the Advanced Manag
ement screen,
the following File Transfer
screen
appears, with the
Receive File via TFTP
value highlighted. You can use this screen to send and
receive files using the TFTP or Kermit protocol.
