- 36 -

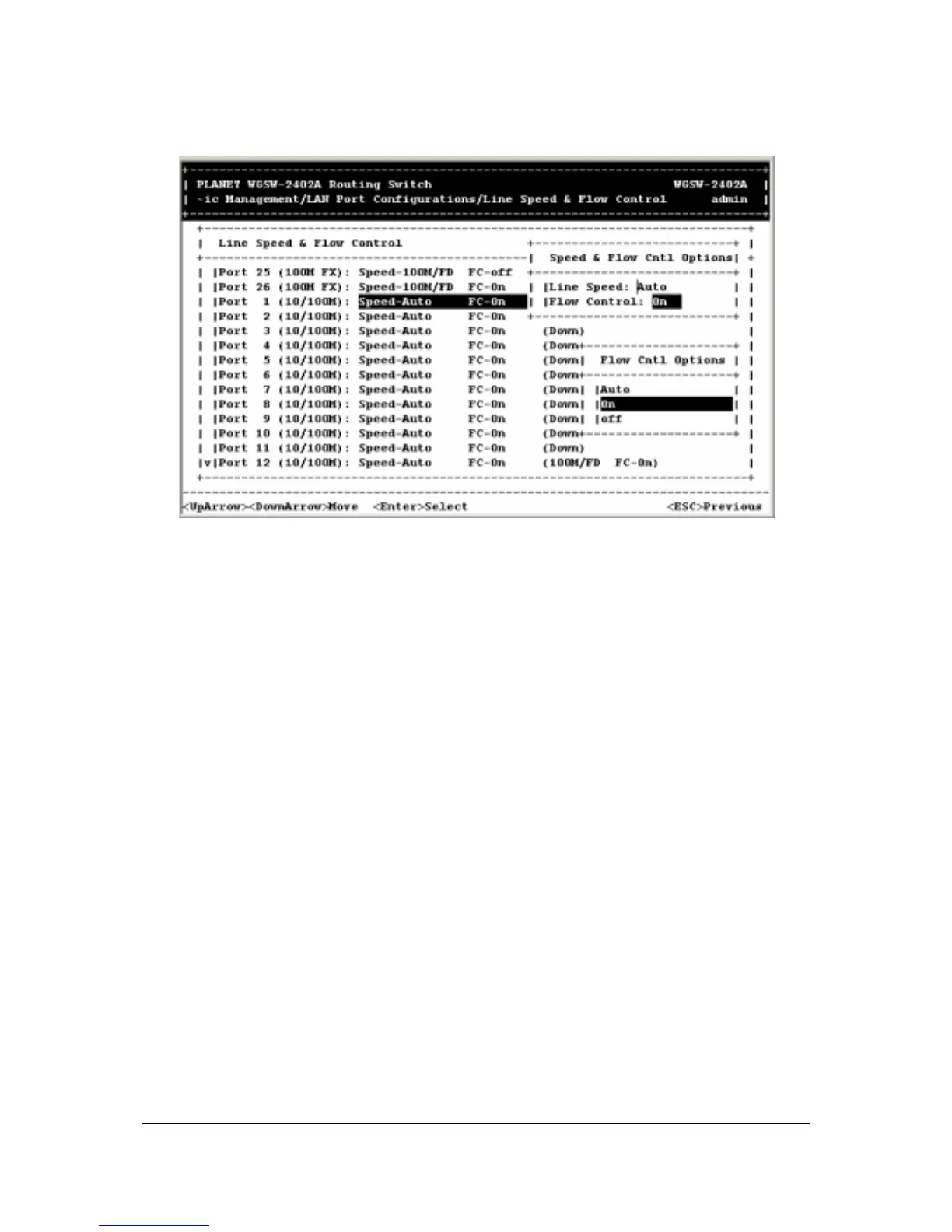

F
IGURE
4-18 F
LOW
C
ONTROL
b. Highlight the flow control option you want to select for the port.
Auto allows the Switch to automatically ascertain whether or not to use flow control.
On enables flow control at all times.
Off disables flow control at all times.
c. Press Esc. You return to the Speed & Flow Cntl Options screen and the flow control setting
you selected appears next to Flow Control.
5. Press Esc to remove the Speed & Flow Cntl Options screen.
6. To configure the line speed and flow control for additional ports, repeat steps 1 through 5.
7. When you finish, press the Esc key from the Line Speed & Flow Control screen to return to the LAN
Port Configurations screen.
4.3.2.2 Hiding or Displaying the Port Column
The Line Speed & Flow Control screen has a column between the port number and speed columns that
shows the port designations on the Switch. In this column, the Switch’s 10/100M ports are designated
by the numbers 1 through 24, while the Switch’s 1000M ports are designated by the letters A and B.
