- 81 -

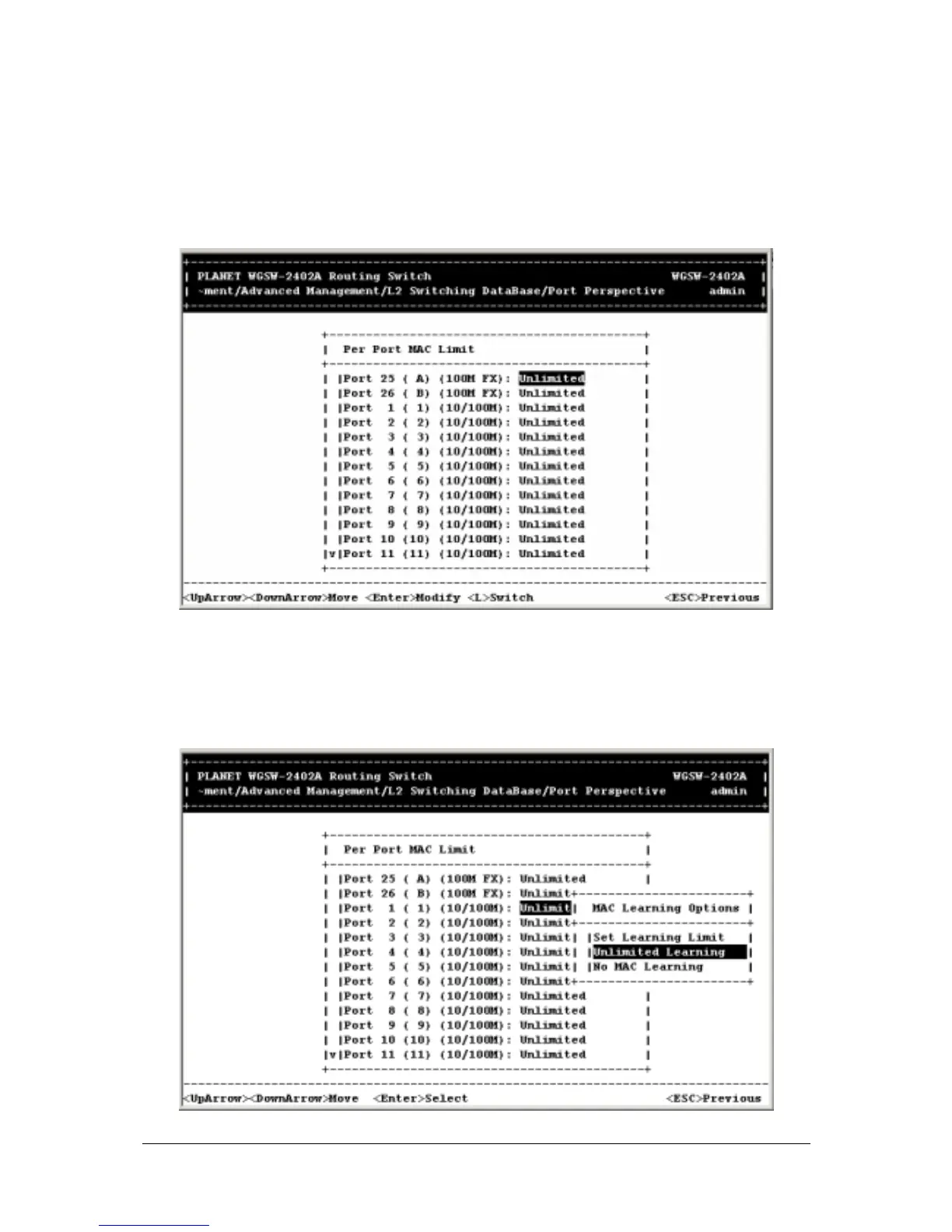

5.5.5 Per Port Mac Limit
This option allows you to specify the maximum numbe
r of MAC addresses on each port.
If you select
Per Port MAC Limit
from the Port Perspective screen, a screen similar to the following
one appears.
F
IGURE
5-41
1.
To specify MAC learning options for a MAC po
rt, use the Up and Down Arrow keys to highlight a
port, then press the Enter key. A MAC Learning Op
tions screen
similar to the following appears.
F
IGURE
5-42
