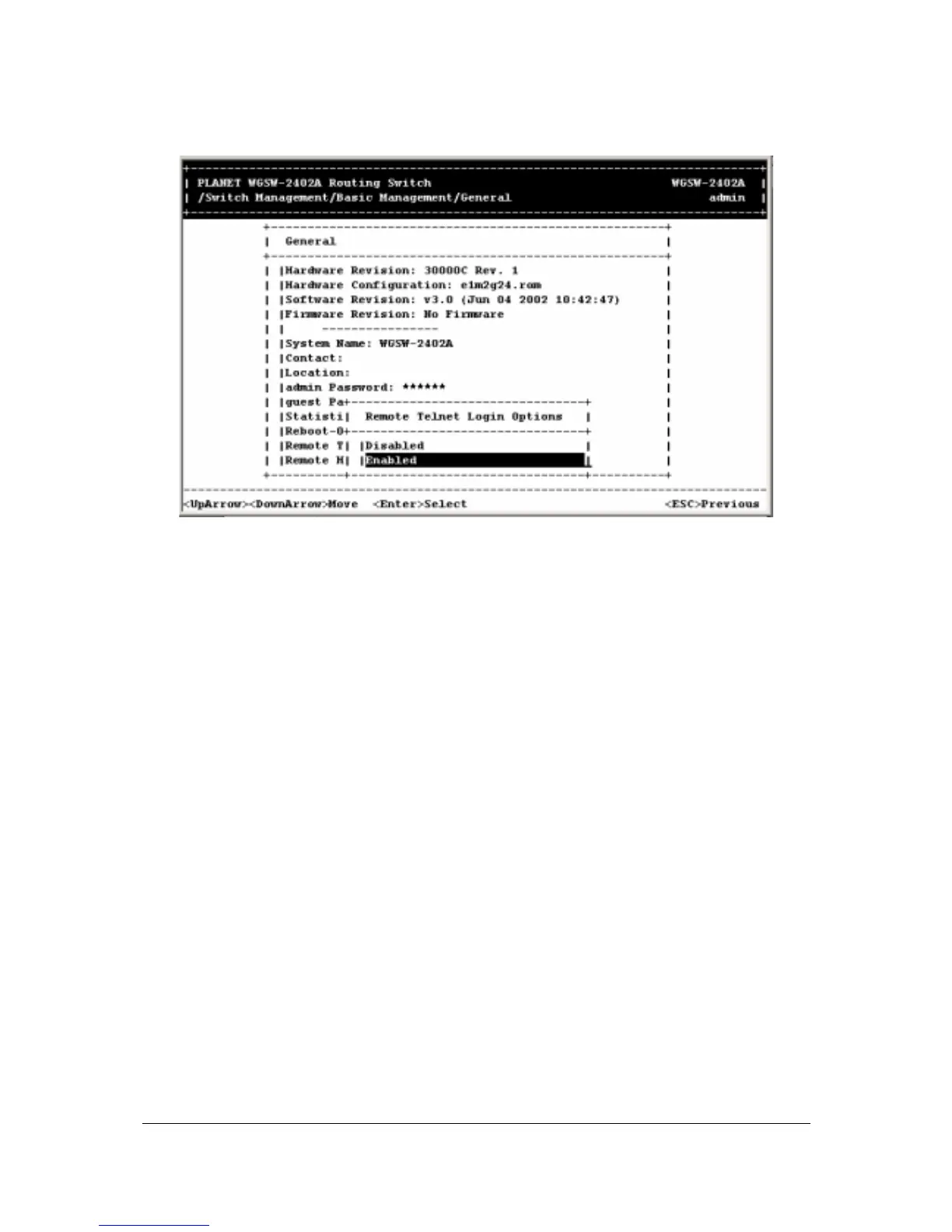

- 31 -
F
IGURE
4-12 R
EMOTE
T
ELNET
L
OGIN
O
PTIONS
2.
Highlight one of the following choice
s:
Disabled
prevents remote Telnet logins to the Switch.
Enabled
allows remote Telnet logins to t
he Switch. This is the default setting.
3.
Press Enter to return to the General screen.
4.3.1.8 Remote Http Login
To enable or disable the function of Re
mote Http Login:
1.
From the General screen, highlight
Remote Http Login and press the Enter key. The following
screen will appear:
38
