- 241 -
F
IGURE
7-37

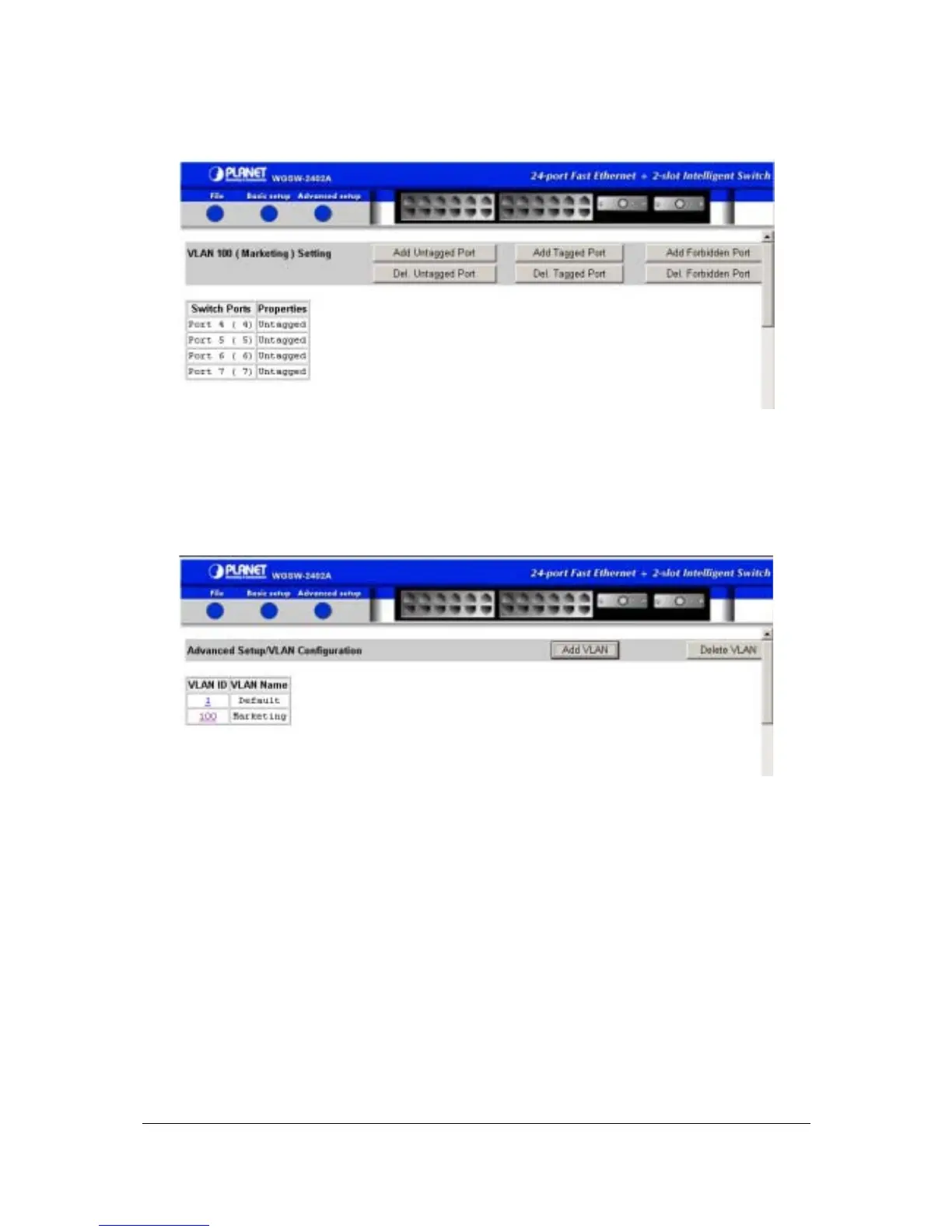

9. Click
the
Advanced Setup -> VLAN & PVID Perspective -> VLAN Configuration
. A window
similar to the following appears, showing the VLAN you add
ed.
F
IGURE
7-38
7.7.1.2 Updating VLAN Information
To update the port types defined for a VLAN, use the followin
g
procedure.
1. Point
to
Advanced Setup
, point to
VLAN & PVID Perspective
, and click
VLAN Con
figuration
.
Any VLANs already defined appear.
248
