- 228 -

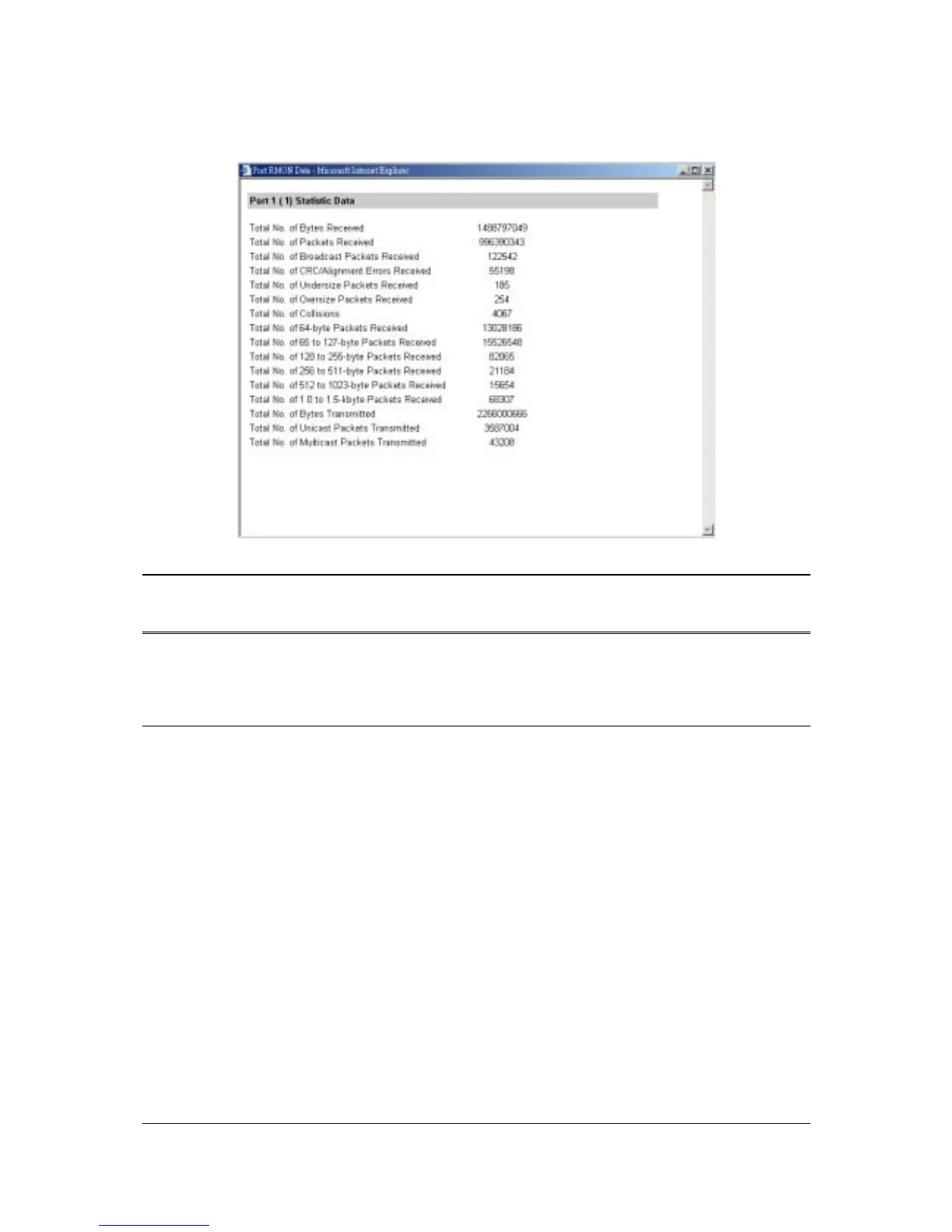

F
IGURE
7-17
Note:
The information displayed in this windo
w is
automatically updated every 15 seconds, without
requiring you to refresh the window.
7.4 Bridging
To access bridging param
eters, point to
Advanced Setup
and click
Bridging.
A list of ports similar to
the one in Figure 5-39 appears.
