- 242 -
F
IGURE
7-39

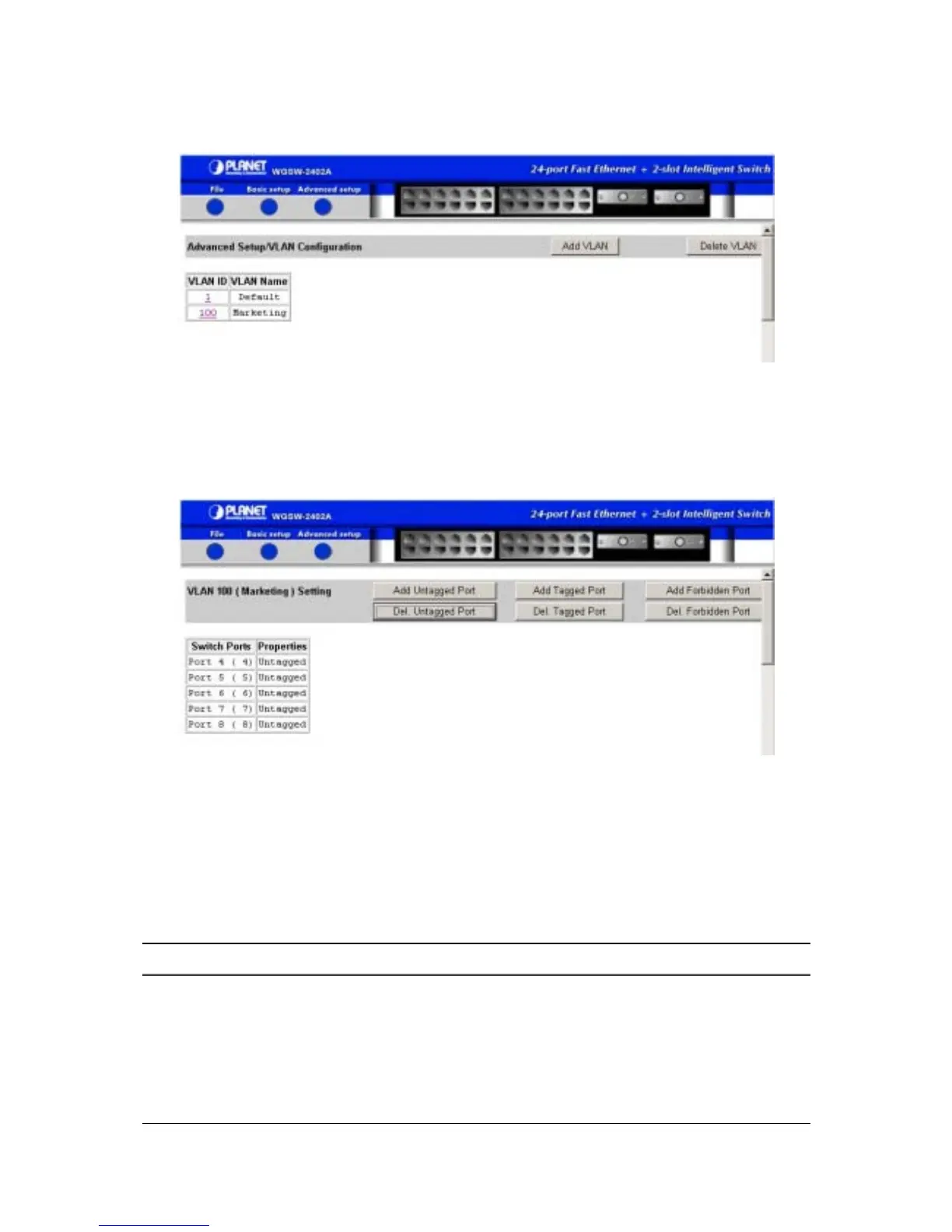

2. Under VLAN ID, click the ID of the VLAN you want to modify. A VLAN setting window similar to the
following appears, showing the port properties you selected for the VLAN.
F
IGURE
7-40
3. Click the six buttons to modify the VLAN configuration you need.
7.7.1.3 Deleting a VLAN
If you no longer require a VLAN, use the following procedure to delete it.
Note: You cannot delete the default VLAN (VLAN 1).
1. Point to Advanced Setup, point to VLAN & PVID Perspective, and click VLAN Configuration.
Any VLAN already defined appear.
2. Click the Delete VLAN button. A Delete VLAN screen appears.
